singleton class mainly used for IO More...

#include <Domain.hpp>

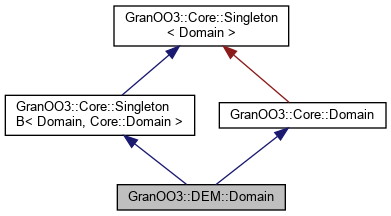

Inheritance diagram for GranOO3::DEM::Domain:

[legend]

Public Member Functions
	~Domain ()
	destructor, it does nothing particular More...

void	save (std::string) const
	save the current of the domain state in the specified `file` More...

void	load (std::string)
	load a domain from the specified `file` More...

void	save_ascii () const
	save the current of the domain state with ascii file format More...

void	save_ascii (std::string) const
	save the current of the domain state with ascii file format More...

void	load_ascii (std::string)
	load a domain from the specified `file` More...

void	save_roga () const

void	save_roga (std::string) const

void	load_roga (std::string)

void	save_off (std::string) const
	save the current SupportShape More...

void	save_xyz (std::string set="Global") const
	save the current state of the domain in the *.xyz format More...

void	save_xyz (std::string, std::string set="Global") const
	save the current state of the domain in the *.xyz format More...

void	save_xyzr (std::string set="Global") const
	save the current state of the domain in the *.xyzr format More...

void	save_xyzr (std::string, std::string set="Global") const
	save the current state of the domain in the *.xyzr format More...

void	load_xyzr (std::string)
	load the current state of the domain More...

void	load_rxyz (std::string)
	load the current state of the domain More...

void	to_vtk (std::vector< std::pair< std::string, vtkSmartPointer< vtkUnstructuredGrid > > > &data, bool save_discrete_element_shape)
	utility method for saving the current state of the domain in vtk More...

void	read_sample_file (const std::string &fileName, const std::string &Id, const Geom::Frame &f, const std::string &prefix, const std::string &suffix, bool updateInitialParametersToCurrentParameters, bool clearKinematics, bool updateDiscreteShape)
	utility method for loading a sample file with a lot of option ! More...

Public Member Functions inherited from GranOO3::Core::Domain
void	clear ()

void	save () const

void	save_light () const

void	save_light (std::string) const

void	load_light (std::string)

void	export_to_povray () const

void	export_to_povray (std::string) const

std::ostream &	export_to_povray (std::ostream &out) const

Private Member Functions
	Domain ()
	constructor, it does nothing particular More...

	Domain (const Domain &)=delete

Domain &	operator= (const Domain &)=delete

template<class Archive >
void	serialize (Archive &, const unsigned int)
	serialize the whole domain in the standard gdd format More...

Friends
class	boost::serialization::access

Additional Inherited Members
Static Public Member Functions inherited from GranOO3::Core::Singleton< Domain >
static bool	exist ()

static Domain &	get ()

static void	instanciate ()

static void	delete_me ()

Static Public Member Functions inherited from GranOO3::Core::Domain
static std::string	std_file_extension ()

static std::string	light_file_extension ()

static std::string	ascii_file_extension ()

static std::string	povray_file_extension ()

static std::string	xyzr_file_extension ()

static std::string	rxyz_file_extension ()

static std::string	gfem_file_extension ()

static std::string	light_file_header ()

static std::string	roga_file_extension ()

Protected Member Functions inherited from GranOO3::Core::SingletonB< Domain, Core::Domain >
	SingletonB ()

virtual	~SingletonB ()

Protected Member Functions inherited from GranOO3::Core::Singleton< Domain >
	Singleton ()

virtual	~Singleton ()

Protected Member Functions inherited from GranOO3::Core::Domain
	Domain ()

Protected Attributes inherited from GranOO3::Core::Domain
IOManager	_io

std::string	_file_prefix

Static Protected Attributes inherited from GranOO3::Core::Singleton< Domain >
static Domain *	_me

Detailed Description

singleton class mainly used for IO

Constructor & Destructor Documentation

◆ ~Domain()

GranOO3::DEM::Domain::~Domain ( )

virtual

destructor, it does nothing particular

Reimplemented from GranOO3::Core::Domain.

◆ Domain() [1/2]

GranOO3::DEM::Domain::Domain ( )

private

constructor, it does nothing particular

◆ Domain() [2/2]

GranOO3::DEM::Domain::Domain ( const Domain & )

privatedelete

Member Function Documentation

◆ load()

void GranOO3::DEM::Domain::load ( std::string file )

virtual

load a domain from the specified file

Parameters

[in] file : file name

The type of the file is automatically detected with the extension (*.gdd, *.agdd, etc.)

Reimplemented from GranOO3::Core::Domain.

◆ load_ascii()

void GranOO3::DEM::Domain::load_ascii ( std::string file )

load a domain from the specified file

Parameters

[in] file : file name

Here the expected type of file is *.agdd, see save_ascii()

◆ load_roga()

void GranOO3::DEM::Domain::load_roga ( std::string fileName )

◆ load_rxyz()

void GranOO3::DEM::Domain::load_rxyz ( std::string file )

load the current state of the domain

Parameters

[in] file : the file name is the *.rxyz format

Load the current state of the domain with the well-known-simple *.rxyz format

◆ load_xyzr()

void GranOO3::DEM::Domain::load_xyzr ( std::string file )

load the current state of the domain

Parameters

[in] file : the file name is the *.xyzr format

Load the current state of the domain with the well-known-simple *.xyzr format

◆ operator=()

Domain& GranOO3::DEM::Domain::operator= ( const Domain & )

privatedelete

◆ read_sample_file()

void GranOO3::DEM::Domain::read_sample_file	(	const std::string &	fileName,
		const std::string &	setID,
		const Geom::Frame &	frame,
		const std::string &	prefix,
		const std::string &	suffix,
		bool	update,
		bool	clear,
		bool	support_shape
	)

utility method for loading a sample file with a lot of option !

Parameters

[in]	fileName	: the file name to load
[in]	setID	: if not empty, build new SetOf and put the entire domain inside
[in]	frame	: translate and rotate the sample file to the desired place
[in]	prefix	: all the `SetOf` contained in the sample file will be prefixed by the specified `prefix`
[in]	suffix	: all the `SetOf` contained in the sample file will be suffixed by the specified `suffix`
[in]	update	: if true, the current state of the loaded domain will be considered as the initial state
[in]	clear	: if true, the kinematics (velocity, acceleration) will be considered as zero
[in]	support_shape	: if true, the associated support shape will be updated

This method is mainly used for loading a sample file at the beginning of a simulation. It allows to change the orientation and the position of the sample, to consider these new positions as initial parameters and so on...

◆ save()

void GranOO3::DEM::Domain::save ( std::string file ) const

virtual

save the current of the domain state in the specified file

Parameters

[in] file : file name

The type of the file is automatically detected with the extension (*.gdd, *.agdd, etc.)

Reimplemented from GranOO3::Core::Domain.

◆ save_ascii() [1/2]

void GranOO3::DEM::Domain::save_ascii ( ) const

save the current of the domain state with ascii file format

The name of the file is automatically built with the current iteration number. Here, the standard granoo ascii file format (*.agdd) is chosen for saved the file. This simple format is dedicated to discrete domains with spherical elements. The advantage of this format is its compatibility between the different granoo version.

◆ save_ascii() [2/2]

void GranOO3::DEM::Domain::save_ascii ( std::string file ) const

save the current of the domain state with ascii file format

Parameters

[in] file : file name of the output file

Same as save_ascii() (with a specified file)

◆ save_off()

void GranOO3::DEM::Domain::save_off ( std::string file ) const

save the current SupportShape

Parameters

[in] file : file name of the output file

This method is quite particular. It allows to save in the *.off format the main support shape (with a polyhedral shape) in the *.off format. Be aware, this method does not save the whole state of a domain !

◆ save_roga() [1/2]

void GranOO3::DEM::Domain::save_roga ( ) const

◆ save_roga() [2/2]

void GranOO3::DEM::Domain::save_roga ( std::string fileName ) const

◆ save_xyz() [1/2]

void GranOO3::DEM::Domain::save_xyz ( std::string set = "Global" ) const

save the current state of the domain in the *.xyz format

Parameters

[in] set : the set ID of the Element to save (default is the Global set)

The name of the file is automatically built with the current iteration number. Here, the standard *.xyz is chosen for saved the file. This very very simple format is mainly dedicated to discrete domains with spherical elements. Its advantage is its compatibility between different simulation tools.

◆ save_xyz() [2/2]

void GranOO3::DEM::Domain::save_xyz	(	std::string	file,
		std::string	set = `"Global"`
	)		const

save the current state of the domain in the *.xyz format

Parameters

[in]	file	: the file name
[in]	set	: the set ID of the Element to save (default is the `Global` set)

Similar as save_xyz(std::string set="Global") (with a specified file).

◆ save_xyzr() [1/2]

void GranOO3::DEM::Domain::save_xyzr ( std::string set = "Global" ) const

save the current state of the domain in the *.xyzr format

Parameters

[in] set : the set ID of the Element to save (default is the Global set)

The name of the file is automatically built with the current iteration number. Here, the standard *.xyzr is chosen for saved the file. This very very simple format is mainly dedicated to discrete domains with spherical elements. Its advantage is its compatibility between different simulation tools.

◆ save_xyzr() [2/2]

void GranOO3::DEM::Domain::save_xyzr	(	std::string	file,
		std::string	set = `"Global"`
	)		const

save the current state of the domain in the *.xyzr format

Parameters

[in]	file	: the file name
[in]	set	: the set ID of the Element to save (default is the `Global` set)

Similar as save_xyzr(std::string set="Global") (with a specified file).

◆ serialize()

template<class Archive >

void GranOO3::DEM::Domain::serialize	(	Archive &	ar,
		const unsigned int	version
	)

inlineprivate

serialize the whole domain in the standard gdd format

◆ to_vtk()

void GranOO3::DEM::Domain::to_vtk	(	std::vector< std::pair< std::string, vtkSmartPointer< vtkUnstructuredGrid > > > &	data,
		bool	with_element_shape
	)

utility method for saving the current state of the domain in vtk

Parameters

[in]	data	: a vector of (key,pointer) that represents the data
[in]	with_element_shape	: export also the element shape (mainly used for polyhedral elements)

This method is used for paraview export

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Domain.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Domain.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Domain.dox
