#include <Element.hpp>

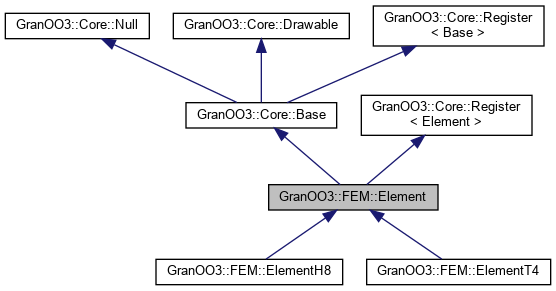

Inheritance diagram for GranOO3::FEM::Element:

[legend]

Public Member Functions
	Element ()

virtual	~Element ()

virtual Eigen::VectorXd	shape_function_at_coordinate (double xi, double eta, double zeta)=0

virtual Eigen::MatrixXd	shape_function_derivative_at_coordinate (double xi, double eta, double zeta)=0

virtual unsigned int	node_count ()=0

virtual unsigned int	dof_per_node_count ()=0

virtual unsigned int	gauss_point_count ()=0

virtual std::string	name ()=0

virtual std::string	vtk_name ()=0

virtual Eigen::MatrixXd	d_ndx_at_gauss_point (unsigned int gaussPointIndex)

virtual Eigen::MatrixXd	shape_function_at_gauss_point (unsigned int gaussPointIndex)

virtual Eigen::MatrixXd	shape_function_derivative_at_gauss_point (unsigned int gaussPointIndex)

virtual Eigen::VectorXd	strain_at_gauss_point (unsigned int gaussPointIndex)

virtual Eigen::VectorXd	internal_force ()

virtual Eigen::VectorXd	internal_force_at_gauss_point (unsigned int gaussPointIndex)

virtual Eigen::MatrixXd	mass_matrix ()

virtual Eigen::MatrixXd	mass_matrix_at_gauss_point (unsigned int gaussPointIndex)

void	setup_element ()

void	reset_variable ()

Eigen::MatrixXd	b_matrix_for_d_ndX (Eigen::MatrixXd dNdx)

void	update_state_at_gauss_point (unsigned int gaussPointIndex, const Eigen::VectorXd &dStrain)

void	update_variable ()

std::vector< GranOO3::Physic::Node * > &	node_list ()

const Eigen::MatrixXd &	gauss_point ()

const Eigen::MatrixXd &	node_coord ()

const std::vector< unsigned int > &	connectivity ()

const Eigen::VectorXd &	stress_at_gauss_point (unsigned int igaussPoint)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

virtual std::string	info () const

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::ostream &	write_ascii (std::ostream &out) const

virtual std::istream &	read_ascii (std::istream &in)

virtual std::ostream &	export_to_povray (std::ostream &out) const

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< Element >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Element > &set) const

std::list< SetOf< Element > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Attributes
double	_youngModulus

double	_poissonRatio

double	_density

Protected Attributes
Eigen::MatrixXd	_gauss_point

Eigen::VectorXd	_weights

std::vector< GranOO3::Physic::Node * >	_node_list

Eigen::MatrixXd	_node_coord

std::vector< Eigen::MatrixXd >	_strainDisplacementMatrices

std::vector< double >	_jacobians

std::vector< Eigen::VectorXd >	_oldStrain

std::vector< Eigen::VectorXd >	_newStrain

std::vector< Eigen::VectorXd >	_oldStress

std::vector< Eigen::VectorXd >	_newStress

std::vector< Eigen::VectorXd >	_oldStateVariables

std::vector< Eigen::VectorXd >	_newStateVariables

std::vector< Eigen::MatrixXd >	_ctMatrix

std::vector< unsigned int >	_connectivity

Additional Inherited Members
Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Constructor & Destructor Documentation

◆ Element()

GranOO3::FEM::Element::Element ( )

◆ ~Element()

GranOO3::FEM::Element::~Element ( )

virtual

Member Function Documentation

◆ b_matrix_for_d_ndX()

Eigen::MatrixXd GranOO3::FEM::Element::b_matrix_for_d_ndX ( Eigen::MatrixXd dNdx )

◆ connectivity()

const std::vector<unsigned int>& GranOO3::FEM::Element::connectivity ( )

inline

◆ d_ndx_at_gauss_point()

Eigen::MatrixXd GranOO3::FEM::Element::d_ndx_at_gauss_point ( unsigned int gaussPointIndex )

virtual

◆ dof_per_node_count()

virtual unsigned int GranOO3::FEM::Element::dof_per_node_count ( )

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

◆ gauss_point()

const Eigen::MatrixXd& GranOO3::FEM::Element::gauss_point ( )

inline

◆ gauss_point_count()

virtual unsigned int GranOO3::FEM::Element::gauss_point_count ( )

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

◆ internal_force()

Eigen::VectorXd GranOO3::FEM::Element::internal_force ( )

virtual

◆ internal_force_at_gauss_point()

Eigen::VectorXd GranOO3::FEM::Element::internal_force_at_gauss_point ( unsigned int gaussPointIndex )

virtual

◆ mass_matrix()

Eigen::MatrixXd GranOO3::FEM::Element::mass_matrix ( )

virtual

◆ mass_matrix_at_gauss_point()

Eigen::MatrixXd GranOO3::FEM::Element::mass_matrix_at_gauss_point ( unsigned int gaussPointIndex )

virtual

◆ name()

virtual std::string GranOO3::FEM::Element::name ( )

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

◆ node_coord()

const Eigen::MatrixXd& GranOO3::FEM::Element::node_coord ( )

inline

◆ node_count()

virtual unsigned int GranOO3::FEM::Element::node_count ( )

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

◆ node_list()

std::vector<GranOO3::Physic::Node *>& GranOO3::FEM::Element::node_list ( )

inline

◆ reset_variable()

void GranOO3::FEM::Element::reset_variable ( )

◆ setup_element()

void GranOO3::FEM::Element::setup_element ( )

◆ shape_function_at_coordinate()

virtual Eigen::VectorXd GranOO3::FEM::Element::shape_function_at_coordinate	(	double	xi,
		double	eta,
		double	zeta
	)

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

◆ shape_function_at_gauss_point()

Eigen::MatrixXd GranOO3::FEM::Element::shape_function_at_gauss_point ( unsigned int gaussPointIndex )

virtual

◆ shape_function_derivative_at_coordinate()

virtual Eigen::MatrixXd GranOO3::FEM::Element::shape_function_derivative_at_coordinate	(	double	xi,
		double	eta,
		double	zeta
	)

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

◆ shape_function_derivative_at_gauss_point()

Eigen::MatrixXd GranOO3::FEM::Element::shape_function_derivative_at_gauss_point ( unsigned int gaussPointIndex )

virtual

◆ strain_at_gauss_point()

Eigen::VectorXd GranOO3::FEM::Element::strain_at_gauss_point ( unsigned int gaussPointIndex )

virtual

◆ stress_at_gauss_point()

const Eigen::VectorXd& GranOO3::FEM::Element::stress_at_gauss_point ( unsigned int igaussPoint )

inline

◆ update_state_at_gauss_point()

void GranOO3::FEM::Element::update_state_at_gauss_point	(	unsigned int	gaussPointIndex,
		const Eigen::VectorXd &	dStrain
	)

◆ update_variable()

void GranOO3::FEM::Element::update_variable ( )

◆ vtk_name()

virtual std::string GranOO3::FEM::Element::vtk_name ( )

pure virtual

Implemented in GranOO3::FEM::ElementT4, and GranOO3::FEM::ElementH8.

Member Data Documentation

◆ _connectivity

std::vector<unsigned int> GranOO3::FEM::Element::_connectivity

protected

◆ _ctMatrix

std::vector<Eigen::MatrixXd> GranOO3::FEM::Element::_ctMatrix

protected

◆ _density

double GranOO3::FEM::Element::_density

◆ _gauss_point

Eigen::MatrixXd GranOO3::FEM::Element::_gauss_point

protected

◆ _jacobians

std::vector<double> GranOO3::FEM::Element::_jacobians

protected

◆ _newStateVariables

std::vector<Eigen::VectorXd> GranOO3::FEM::Element::_newStateVariables

protected

◆ _newStrain

std::vector<Eigen::VectorXd> GranOO3::FEM::Element::_newStrain

protected

◆ _newStress

std::vector<Eigen::VectorXd> GranOO3::FEM::Element::_newStress

protected

◆ _node_coord

Eigen::MatrixXd GranOO3::FEM::Element::_node_coord

protected

◆ _node_list

std::vector<GranOO3::Physic::Node *> GranOO3::FEM::Element::_node_list

protected

◆ _oldStateVariables

std::vector<Eigen::VectorXd> GranOO3::FEM::Element::_oldStateVariables

protected

◆ _oldStrain

std::vector<Eigen::VectorXd> GranOO3::FEM::Element::_oldStrain

protected

◆ _oldStress

std::vector<Eigen::VectorXd> GranOO3::FEM::Element::_oldStress

protected

◆ _poissonRatio

double GranOO3::FEM::Element::_poissonRatio

◆ _strainDisplacementMatrices

std::vector<Eigen::MatrixXd> GranOO3::FEM::Element::_strainDisplacementMatrices

protected

◆ _weights

Eigen::VectorXd GranOO3::FEM::Element::_weights

protected

◆ _youngModulus

double GranOO3::FEM::Element::_youngModulus

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/FEM/Element.hpp
/home/granoo/granoo/Lib/GranOO3/FEM/Element.cpp

Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ Element()

◆ ~Element()

Member Function Documentation

◆ b_matrix_for_d_ndX()

◆ connectivity()

◆ d_ndx_at_gauss_point()

◆ dof_per_node_count()

◆ gauss_point()

◆ gauss_point_count()

◆ internal_force()

◆ internal_force_at_gauss_point()

◆ mass_matrix()

◆ mass_matrix_at_gauss_point()

◆ name()

◆ node_coord()

◆ node_count()

◆ node_list()

◆ reset_variable()

◆ setup_element()

◆ shape_function_at_coordinate()

◆ shape_function_at_gauss_point()

◆ shape_function_derivative_at_coordinate()

◆ shape_function_derivative_at_gauss_point()

◆ strain_at_gauss_point()

◆ stress_at_gauss_point()

◆ update_state_at_gauss_point()

◆ update_variable()

◆ vtk_name()

Member Data Documentation

◆ _connectivity

◆ _ctMatrix

◆ _density

◆ _gauss_point

◆ _jacobians

◆ _newStateVariables

◆ _newStrain

◆ _newStress

◆ _node_coord

◆ _node_list

◆ _oldStateVariables

◆ _oldStrain

◆ _oldStress

◆ _poissonRatio

◆ _strainDisplacementMatrices

◆ _weights

◆ _youngModulus
