GranOO3::Shape::Surface Class Reference

#include <Surface.hpp>

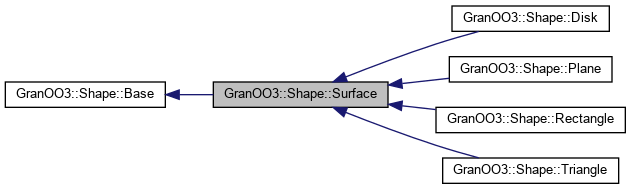

Inheritance diagram for GranOO3::Shape::Surface:

Public Member Functions
	Surface (const Geom::Frame &frame)
virtual	~Surface ()
virtual double	area () const =0
bool	is_surface () const
bool	is_volume () const
virtual bool	collide (const Volume &, Collision::Data &) const =0
virtual bool	collide (const Geom::Point &, Collision::Data &) const =0
Public Member Functions inherited from GranOO3::Shape::Base
	Base (const Geom::Frame &frame)
virtual	~Base ()
virtual void	draw_gl () const =0
virtual void	draw_gl_edge () const
virtual void	scale (double)=0
void	unscale (double)
virtual void	add_glob (const std::string &)=0
virtual void	read_xml_element (const TiXmlElement *el)
virtual std::ostream &	write_ascii (std::ostream &out) const
virtual std::istream &	read_ascii (std::istream &in)
virtual void	to_vtk (vtkUnstructuredGrid *data)
virtual std::string	info () const
virtual std::ostream &	to_povray (std::ostream &out, const Core::Color &) const
const Geom::Frame &	local_frame () const
const Geom::Point &	get_center () const
const Geom::Quaternion &	get_quaternion () const
const Geom::Vector &	get_position () const
void	translate (Geom::Vector &)
void	rotate (const Geom::Vector &axis, const double angleRadian)

Static Public Member Functions
static std::string	class_ID ()
Static Public Member Functions inherited from GranOO3::Shape::Base
static Base &	glob (const std::string &id)
static const Geom::Frame &	frame_buffer ()
static std::string	class_ID ()
static Base *	new_object (const TiXmlElement *el)

Private Member Functions
	Surface (const Surface &)=delete
Surface &	operator= (const Surface &)=delete
template<class Archive >
void	serialize (Archive &, const unsigned int)

Friends
class	boost::serialization::access

Additional Inherited Members
Protected Attributes inherited from GranOO3::Shape::Base
const Geom::Frame &	_frame

Constructor & Destructor Documentation

Surface() [1/2]

GranOO3::Shape::Surface::Surface ( const Geom::Frame &  frame )

explicit

~Surface()

GranOO3::Shape::Surface::~Surface ( )

virtual

Surface() [2/2]

GranOO3::Shape::Surface::Surface ( const Surface &  )

privatedelete

Member Function Documentation

area()

virtual double GranOO3::Shape::Surface::area ( ) const

pure virtual

Implemented in GranOO3::Shape::Triangle, GranOO3::Shape::Rectangle, GranOO3::Shape::Plane, and GranOO3::Shape::Disk.

class_ID()

static std::string GranOO3::Shape::Surface::class_ID ( )

inlinestatic

collide() [1/2]

virtual bool GranOO3::Shape::Surface::collide ( const Geom::Point &  , Collision::Data &    ) const

pure virtual

Implemented in GranOO3::Shape::Triangle, GranOO3::Shape::Rectangle, GranOO3::Shape::Plane, and GranOO3::Shape::Disk.

collide() [2/2]

virtual bool GranOO3::Shape::Surface::collide ( const Volume &  , Collision::Data &    ) const

pure virtual

Implemented in GranOO3::Shape::Triangle, GranOO3::Shape::Rectangle, GranOO3::Shape::Plane, and GranOO3::Shape::Disk.

is_surface()

bool GranOO3::Shape::Surface::is_surface ( ) const

inlinevirtual

Implements GranOO3::Shape::Base.

is_volume()

bool GranOO3::Shape::Surface::is_volume ( ) const

inlinevirtual

Implements GranOO3::Shape::Base.

operator=()

Surface& GranOO3::Shape::Surface::operator= ( const Surface &  )

privatedelete

serialize()

template<class Archive >

void GranOO3::Shape::Surface::serialize ( Archive &  , const unsigned int    )

private

Friends And Related Function Documentation

boost::serialization::access

friend class boost::serialization::access

friend

---

The documentation for this class was generated from the following files:

• /home/granoo/granoo/Lib/GranOO3/Shape/Surface.hpp
• /home/granoo/granoo/Lib/GranOO3/Shape/Surface.cpp
