a bond property able to associate and compute a full strain tensor to DEM::Bond
More...

#include <BondStrain.hpp>

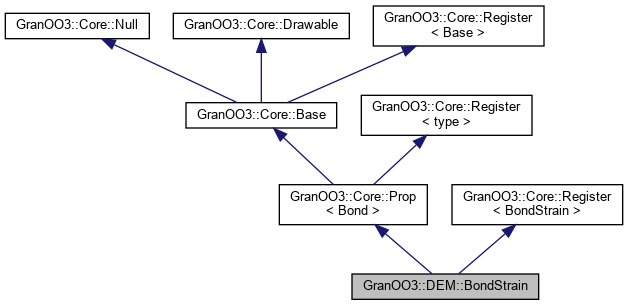

Inheritance diagram for GranOO3::DEM::BondStrain:

[legend]

Public Member Functions
	BondStrain ()
	constructor More...

virtual	~BondStrain ()
	destructor More...

virtual std::string	info () const

void	init ()
	initialize the current value of the strain tensors More...

void	update ()
	compute the current values of the strain tensors More...

Public Member Functions inherited from GranOO3::Core::Prop< Bond >
	Prop ()

virtual	~Prop ()

Bond &	item ()

const Bond &	item () const

void	set_item (Bond &)

virtual void	set_color (const Core::Color &)

Core::Color &	get_color ()

float &	get_line_width ()

virtual void	add (SetOf< Prop< Bond > > *)

virtual void	erase (SetOf< Prop< Bond > > *)

virtual std::ostream &	write_ascii (std::ostream &out) const

virtual std::istream &	read_ascii (std::istream &in)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::ostream &	export_to_povray (std::ostream &out) const

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< type >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< type > &set) const

std::list< SetOf< type > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BondStrain >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BondStrain > &set) const

std::list< SetOf< BondStrain > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Private Member Functions
template<class Archive >
void	serialize (Archive &ar, const unsigned int)
	complete serializing of the instance in the *.gdd format More...

Private Attributes
Geom::SymTensor	_local_strain_tensor
	the strain tensor expressed in the local bond frame More...

Geom::SymTensor	_global_strain_tensor
	the strain tensor expressed in the global frame More...

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from GranOO3::Core::Prop< Bond >
typedef Bond	Owner

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::Core::Prop< Bond >
virtual Base &	base_item ()

virtual const Base &	base_item () const

void	serialize (Archive &ar, const unsigned int)

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Detailed Description

a bond property able to associate and compute a full strain tensor to DEM::Bond

Constructor & Destructor Documentation

◆ BondStrain()

GranOO3::DEM::BondStrain::BondStrain ( )

constructor

Construct a new BondStrain. Do not call this constructor. To build a new BondStrain instance, you must create a new property by invoking the Bond::new_prop<BondStrain>() method of the Bond class.

◆ ~BondStrain()

GranOO3::DEM::BondStrain::~BondStrain ( )

virtual

destructor

Destruct a BondStrain instance. Be aware, as BondStrain is a property, you must not invoke destructor by yourself, it could lead to unexpected behavior. Note that the BondStrain instances are automatically destructed when their associated Bonds are destructed.

Member Function Documentation

◆ info()

std::string GranOO3::DEM::BondStrain::info ( ) const

inlinevirtual

Returns: some useful info about the instance

Reimplemented from GranOO3::Core::Prop< Bond >.

◆ init()

void GranOO3::DEM::BondStrain::init ( )

initialize the current value of the strain tensors

◆ serialize()

template<class Archive >

void GranOO3::DEM::BondStrain::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the instance in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ update()

void GranOO3::DEM::BondStrain::update ( )

compute the current values of the strain tensors

Here, the complete method for computing strains is described in this paper [1]. In brief, a least square method is used for computing the strain related to each element (see the Strain class). The mean value of the strains of the 2 bonded element are taken for the current bond strain tensor. Then, this value is corrected with direct information that can be computed directly from the bond.

[1] André, D., Girardot, J., & Hubert, C. (2019). A novel DEM approach for modeling brittle elastic media based on distinct lattice spring model. Computer Methods in Applied Mechanics and Engineering, 350, 100-122.

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _global_strain_tensor

Geom::SymTensor GranOO3::DEM::BondStrain::_global_strain_tensor

private

the strain tensor expressed in the global frame

◆ _local_strain_tensor

Geom::SymTensor GranOO3::DEM::BondStrain::_local_strain_tensor

private

the strain tensor expressed in the local bond frame

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Prop/BondStrain.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Prop/BondStrain.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Prop/BondStrain.dox
