a property for adding electrical physics to DEM::Element More...

#include <Electrical.hpp>

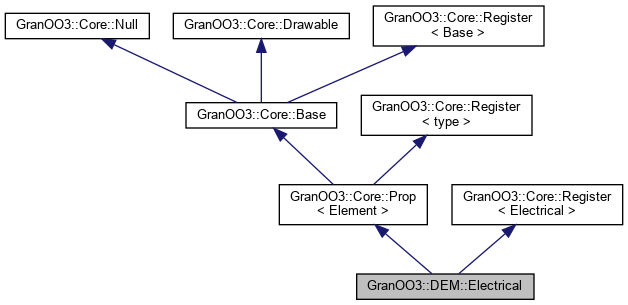

Inheritance diagram for GranOO3::DEM::Electrical:

[legend]

Public Member Functions
	Electrical ()
	constructor More...

virtual	~Electrical ()
	destructor More...

virtual std::string	info () const

void	set_as_positive (bool activate)
	Defines the attached discrete element as connected to the positive terminal of the voltage source. More...

void	set_as_ground (bool activate)
	Defines the attached discrete element as connected to the ground terminal of the voltage source. More...

void	add_current (double current)
	Adds the contribution of a branch to the total current crossing the node, which is represented by a discrete element. More...

void	add_power (double current, double conductance)
	Adds the contribution of a branch to the electrical power crossing the node, given a current and conductance value. More...

void	clear_all_power ()
	Sets all powers to `0`, namely the enterring and leaving powers. More...

void	clear_all_current ()
	Sets all currents to `0`, namely the enterring and leaving currents. More...

void	compute_power ()
	Computes the total power in the node by averaging the enterring and leaving powers. More...

const bool	is_boundary_condition () const

const bool	is_positive () const

const bool	is_ground () const

Public Member Functions inherited from GranOO3::Core::Prop< Element >
	Prop ()

virtual	~Prop ()

Element &	item ()

const Element &	item () const

void	set_item (Element &)

virtual void	set_color (const Core::Color &)

Core::Color &	get_color ()

float &	get_line_width ()

virtual void	add (SetOf< Prop< Element > > *)

virtual void	erase (SetOf< Prop< Element > > *)

virtual std::ostream &	write_ascii (std::ostream &out) const

virtual std::istream &	read_ascii (std::istream &in)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::ostream &	export_to_povray (std::ostream &out) const

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< type >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< type > &set) const

std::list< SetOf< type > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< Electrical >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Electrical > &set) const

std::list< SetOf< Electrical > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Private Member Functions
template<class Archive >
void	serialize (Archive &ar, const unsigned int)
	complete serializing of the instance in the *.gdd format More...

Private Attributes
double	_electrical_conductivity
	The electrical conductivity of the material. More...

double	_potential
	The electrical potential in the node. More...

double	_entering_power
	The sum of all current powers enterring the node. More...

double	_leaving_power
	The sum of all current powers leaving the node. More...

double	_total_power
	The total power in the node computed as the average of the enterring and leaving powers. More...

double	_joule_power

double	_entering_current
	The sum of all currents enterring the node. More...

double	_leaving_current
	The sum of all currents leaving the node. More...

bool	_boundary_condition
	A flag that tells whether the node is part of the boundary conditions. More...

bool	_is_ground
	A flag that tells whether the node is part of the ground terminal of the current source. More...

bool	_is_positive
	A flag that tells whether the node is part of the positive terminal of the current source. More...

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from GranOO3::Core::Prop< Element >
typedef Element	Owner

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::Core::Prop< Element >
virtual Base &	base_item ()

virtual const Base &	base_item () const

void	serialize (Archive &ar, const unsigned int)

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Detailed Description

a property for adding electrical physics to DEM::Element

The aim of this DEM::Element property is to add electrical properties to DEM::Element. It enables to carry out multi-physics simulation taking into account electrical conduction. For more information, please refer to [1].

[1] Hubert, C., André, D., Dubar, L., Iordanoff, I., & Charles, J. L. (2017). Simulation of continuum electrical conduction and Joule heating using DEM domains. International Journal for Numerical Methods in Engineering, 110(9), 862-877.

Constructor & Destructor Documentation

◆ Electrical()

GranOO3::DEM::Electrical::Electrical ( )

constructor

Constructs a new Electrical instance. Do not call this constructor. To build a new Electrical instance, you must create a new property by invoking the Element::new_prop<Electrical>() method of the Element class.

◆ ~Electrical()

GranOO3::DEM::Electrical::~Electrical ( )

virtual

destructor

Destructs an Electrical instance. Be aware, as Electrical is a property, you must not invoke destructor by yourself, it could lead to unexpected behavior. Note that the Electrical instances are automatically destructed when their associated elements are destructed.

Member Function Documentation

◆ add_current()

void GranOO3::DEM::Electrical::add_current ( double current )

Adds the contribution of a branch to the total current crossing the node, which is represented by a discrete element.

Parameters

[in] current : The current to be added.

◆ add_power()

void GranOO3::DEM::Electrical::add_power	(	double	current,
		double	conductance
	)

Adds the contribution of a branch to the electrical power crossing the node, given a current and conductance value.

Parameters

[in]	current	: The current in the branch.
[in]	conductance	: The branch conductance.

◆ clear_all_current()

void GranOO3::DEM::Electrical::clear_all_current ( )

Sets all currents to 0, namely the enterring and leaving currents.

◆ clear_all_power()

void GranOO3::DEM::Electrical::clear_all_power ( )

Sets all powers to 0, namely the enterring and leaving powers.

◆ compute_power()

void GranOO3::DEM::Electrical::compute_power ( )

Computes the total power in the node by averaging the enterring and leaving powers.

◆ info()

std::string GranOO3::DEM::Electrical::info ( ) const

virtual

Returns: Some useful info about the instance

Reimplemented from GranOO3::Core::Prop< Element >.

◆ is_boundary_condition()

const bool GranOO3::DEM::Electrical::is_boundary_condition ( ) const

Returns: true or false whether the node is defined as a boundary condition.

◆ is_ground()

const bool GranOO3::DEM::Electrical::is_ground ( ) const

Returns: true or false whether the node is part of the ground terminal of the current source.

◆ is_positive()

const bool GranOO3::DEM::Electrical::is_positive ( ) const

Returns: true or false whether the node is part of the positive terminal of the current source.

◆ serialize()

template<class Archive >

void GranOO3::DEM::Electrical::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the instance in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ set_as_ground()

void GranOO3::DEM::Electrical::set_as_ground ( bool activate )

Defines the attached discrete element as connected to the ground terminal of the voltage source.

Parameters

[in] activate : A flag that defines the attached discrete element as positive.

◆ set_as_positive()

void GranOO3::DEM::Electrical::set_as_positive ( bool activate )

Defines the attached discrete element as connected to the positive terminal of the voltage source.

Parameters

[in] activate : A flag that defines the attached discrete element as positive.

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _boundary_condition

bool GranOO3::DEM::Electrical::_boundary_condition

private

A flag that tells whether the node is part of the boundary conditions.

◆ _electrical_conductivity

double GranOO3::DEM::Electrical::_electrical_conductivity

private

The electrical conductivity of the material.

◆ _entering_current

double GranOO3::DEM::Electrical::_entering_current

private

The sum of all currents enterring the node.

◆ _entering_power

double GranOO3::DEM::Electrical::_entering_power

private

The sum of all current powers enterring the node.

◆ _is_ground

bool GranOO3::DEM::Electrical::_is_ground

private

A flag that tells whether the node is part of the ground terminal of the current source.

◆ _is_positive

bool GranOO3::DEM::Electrical::_is_positive

private

A flag that tells whether the node is part of the positive terminal of the current source.

◆ _joule_power

double GranOO3::DEM::Electrical::_joule_power

private

◆ _leaving_current

double GranOO3::DEM::Electrical::_leaving_current

private

The sum of all currents leaving the node.

◆ _leaving_power

double GranOO3::DEM::Electrical::_leaving_power

private

The sum of all current powers leaving the node.

◆ _potential

double GranOO3::DEM::Electrical::_potential

private

The electrical potential in the node.

◆ _total_power

double GranOO3::DEM::Electrical::_total_power

private

The total power in the node computed as the average of the enterring and leaving powers.

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Prop/Electrical.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Prop/Electrical.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Prop/Electrical.dox

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Electrical()

◆ ~Electrical()

Member Function Documentation

◆ add_current()

◆ add_power()

◆ clear_all_current()

◆ clear_all_power()

◆ compute_power()

◆ info()

◆ is_boundary_condition()

◆ is_ground()

◆ is_positive()

◆ serialize()

◆ set_as_ground()

◆ set_as_positive()

Friends And Related Function Documentation

◆ boost::serialization::access

Member Data Documentation

◆ _boundary_condition

◆ _electrical_conductivity

◆ _entering_current

◆ _entering_power

◆ _is_ground

◆ _is_positive

◆ _joule_power

◆ _leaving_current

◆ _leaving_power

◆ _potential

◆ _total_power
