a bond property able to associate and compute a full stress tensor to bonds. More...

#include <BondStress.hpp>

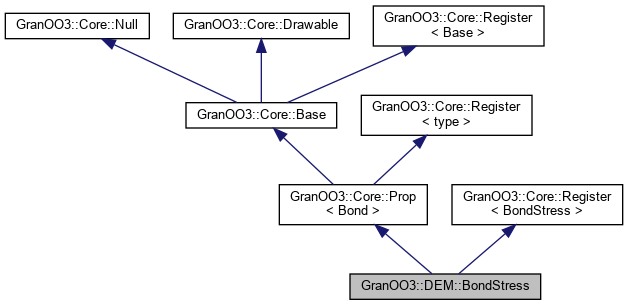

Inheritance diagram for GranOO3::DEM::BondStress:

[legend]

Public Member Functions
	BondStress ()
	constructor More...

virtual	~BondStress ()
	destructor More...

virtual std::string	info () const

void	update_from_bond_strain_with_hook_law (double young_modulus, double poisson_ratio)
	compute the current values of the stress tensors More...

Public Member Functions inherited from GranOO3::Core::Prop< Bond >
	Prop ()

virtual	~Prop ()

Bond &	item ()

const Bond &	item () const

void	set_item (Bond &)

virtual void	set_color (const Core::Color &)

Core::Color &	get_color ()

float &	get_line_width ()

virtual void	add (SetOf< Prop< Bond > > *)

virtual void	erase (SetOf< Prop< Bond > > *)

virtual std::ostream &	write_ascii (std::ostream &out) const

virtual std::istream &	read_ascii (std::istream &in)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::ostream &	export_to_povray (std::ostream &out) const

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< type >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< type > &set) const

std::list< SetOf< type > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BondStress >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BondStress > &set) const

std::list< SetOf< BondStress > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Private Member Functions
template<class Archive >
void	serialize (Archive &ar, const unsigned int)
	complete serializing of the instance in the *.gdd format More...

Private Attributes
Geom::SymTensor	_global_stress_tensor
	the stress tensor expressed in the global frame More...

Geom::SymTensor	_local_stress_tensor
	the stress tensor expressed in the local bond frame More...

Geom::Vector	_eigen_vector
	the eigen vector that represent the principal stresses More...

Geom::Quaternion	_eigen_quaternion
	a quaternion that represents the rotation matrix that gives the diagonal stress tensor More...

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from GranOO3::Core::Prop< Bond >
typedef Bond	Owner

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::Core::Prop< Bond >
virtual Base &	base_item ()

virtual const Base &	base_item () const

void	serialize (Archive &ar, const unsigned int)

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Detailed Description

a bond property able to associate and compute a full stress tensor to bonds.

The stresses are computed from the BondStrain value thanks to the Hook's law. Be aware, this property is VERY EXPERIMENTAL

Constructor & Destructor Documentation

◆ BondStress()

GranOO3::DEM::BondStress::BondStress ( )

constructor

Construct a new BondStress. Do not call this constructor. To build a new BondStress instance, you must create a new property by invoking the Bond::new_prop<BondStress>() method of the Bond class.

◆ ~BondStress()

GranOO3::DEM::BondStress::~BondStress ( )

virtual

destructor

Destruct a BondStress instance. Be aware, as BondStress is a property, you must not invoke destructor by yourself, it could lead to unexpected behavior. Note that the BondStress instances are automatically destructed when their associated Bonds are destructed.

Member Function Documentation

◆ info()

std::string GranOO3::DEM::BondStress::info ( ) const

inlinevirtual

Returns: some useful info about the instance

Reimplemented from GranOO3::Core::Prop< Bond >.

◆ serialize()

template<class Archive >

void GranOO3::DEM::BondStress::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the instance in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ update_from_bond_strain_with_hook_law()

void GranOO3::DEM::BondStress::update_from_bond_strain_with_hook_law	(	double	young_modulus,
		double	poisson_ratio
	)

compute the current values of the stress tensors

Parameters

[in]	young_modulus	: the Young's modulus value of the continuous material (macroscopic value)
[in]	poisson_ratio	: the Poisson's ratio value of the continuous material (macroscopic value)

The stress tensor is computed thanks to the strain tensor computed by BondStrain. The stresses are simply computed with the Hook's law for isotropic material.

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _eigen_quaternion

Geom::Quaternion GranOO3::DEM::BondStress::_eigen_quaternion

private

a quaternion that represents the rotation matrix that gives the diagonal stress tensor

Note that this quaternion is computed from the global frame (and not the local frame)

◆ _eigen_vector

Geom::Vector GranOO3::DEM::BondStress::_eigen_vector

private

the eigen vector that represent the principal stresses

◆ _global_stress_tensor

Geom::SymTensor GranOO3::DEM::BondStress::_global_stress_tensor

private

the stress tensor expressed in the global frame

◆ _local_stress_tensor

Geom::SymTensor GranOO3::DEM::BondStress::_local_stress_tensor

private

the stress tensor expressed in the local bond frame

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Prop/BondStress.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Prop/BondStress.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Prop/BondStress.dox
