GranOO3::DEM::Full3D Class Reference

a singleton virtual class for representing periodic boundaries More...

#include <Full3D.hpp>

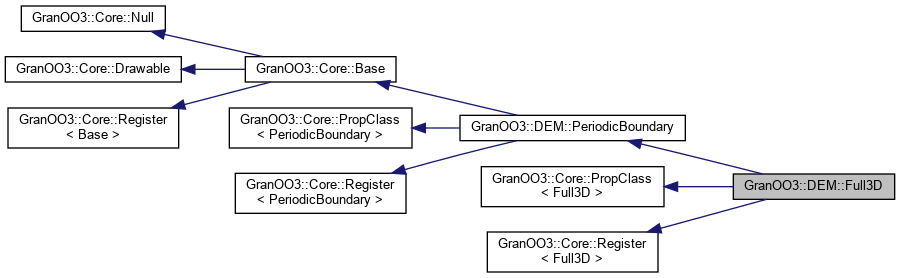

Inheritance diagram for GranOO3::DEM::Full3D:

Public Member Functions
	Full3D ()
	constructor More...
virtual	~Full3D ()
	destructor More...
void	set_bounding_box (const Shape::Box &box)
	set the length of the periodic box More...
void	set_bounding_box (double lx, double ly, double lz)
	set the length of the periodic box More...
void	scale_bounding_box (double factor)
	apply an expansion factor to the length of the periodic box More...
void	init_function ()
	a function that must be triggered to initialize the periodic boundary More...
double	get_lx () const
	get the length of the periodic box along x More...
double	get_ly () const
	get the length of the periodic box along y More...
double	get_lz () const
	get the length of the periodic box along z More...
void	set_length_on_x (double value)
	set the length of the periodic box along x More...
void	set_length_on_y (double value)
	set the length of the periodic box along y More...
void	set_length_on_z (double value)
	set the length of the periodic box along z More...
void	distort_on_x (double angle)
	distort the periodic domain along x More...
void	distort_on_y (double angle)
	distort the periodic domain along y More...
void	distort_on_z (double angle)
	distort the periodic domain along z More...
virtual void	draw ()
	a pure virtual function to draw the domain More...
virtual std::string	info () const
	get some info on the periodic bounday More...
virtual std::ostream &	write_ascii (std::ostream &out) const
	dump the current state of the periodic boundary in a ascii file (standard *.lgdd format) More...
virtual std::istream &	read_ascii (std::istream &in)
	update the current state of periodic boundary from an ascii file format *.lgdd More...
Public Member Functions inherited from GranOO3::DEM::PeriodicBoundary
	PeriodicBoundary ()
	constructor More...
virtual	~PeriodicBoundary ()
	destructor More...
void	make_periodic (Element &el)
	a function that transforms a normal element into a periodic master element with its related slaves More...
void	init_periodic_object ()
	a function that initializes all the Periodic instances More...
void	retrieve_slave ()
void	clean_slave_element_without_master ()
std::function< Geom::Vector(const Geom::Vector &, bool &)> &	get_periodic_mv_function ()
	get the move function More...
std::function< Geom::Vector(const Geom::Vector &)> &	get_follow_master_function (unsigned int rank)
	get the "follow master" More...
Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()
size_t	numID () const
size_t	uID () const
void	set_numID (size_t val)
void	clear_numID ()
Physic::Material &	get_mat () const
void	set_mat (Physic::Material *)
Base &	item ()
const Base &	item () const
bool	is_same (const Base &) const
template<class T >
T &	cast_to ()
template<class T >
const T &	cast_to () const
template<class T >
bool	is () const
virtual bool	is (size_t) const
virtual const std::string &	get_ID () const
virtual Base &	clone ()
template<class T >
T &	clone_to ()
virtual std::ostream &	export_to_povray (std::ostream &out) const
Signal< Base & > &	deleted_signal ()
Public Member Functions inherited from GranOO3::Core::Null
	Null ()
virtual	~Null ()
Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()
virtual	~Drawable ()
virtual void	draw_edge ()
virtual void	init_default_color ()
virtual std::ostream &	get_info (std::ostream &os) const
virtual const Color &	default_color () const
Color &	get_color ()
const Color &	get_color () const
virtual void	set_color (const Color &)
virtual void	set_alpha (float alpha)
void	apply_color () const
void	apply_edge_color () const
void	apply_default_color ()
void	apply_selected_color ()
void	set_line_width (float)
float	get_line_width () const
float &	get_line_width ()
void	apply_line_width () const
bool	is_visible () const
void	set_visible (bool)
void	paint ()
void	paint_edge ()
unsigned int	get_item_glkey () const
Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()
virtual	~Register ()
void	erase_from_all_setof ()
bool	belong_to_setof (const std::string &setOfId) const
bool	belong_to_setof (const SetOf< Base > &set) const
std::list< SetOf< Base > * > &	get_setof_list ()
unsigned long long int	get_numeric_ID () const
Public Member Functions inherited from GranOO3::Core::PropClass< PeriodicBoundary >
	PropClass ()
virtual	~PropClass ()
T &	new_object ()
T &	get ()
const T &	get () const
bool	prop_exist () const
void	add_prop (Core::Prop< PeriodicBoundary > *)
void	remove_prop (Core::Prop< PeriodicBoundary > *)
std::string	info () const
Public Member Functions inherited from GranOO3::Core::Register< PeriodicBoundary >
	Register ()
virtual	~Register ()
void	erase_from_all_setof ()
bool	belong_to_setof (const std::string &setOfId) const
bool	belong_to_setof (const SetOf< PeriodicBoundary > &set) const
std::list< SetOf< PeriodicBoundary > * > &	get_setof_list ()
unsigned long long int	get_numeric_ID () const
Public Member Functions inherited from GranOO3::Core::PropClass< Full3D >
	PropClass ()
virtual	~PropClass ()
T &	new_object ()
T &	get ()
const T &	get () const
bool	prop_exist () const
void	add_prop (Core::Prop< Full3D > *)
void	remove_prop (Core::Prop< Full3D > *)
std::string	info () const
Public Member Functions inherited from GranOO3::Core::Register< Full3D >
	Register ()
virtual	~Register ()
void	erase_from_all_setof ()
bool	belong_to_setof (const std::string &setOfId) const
bool	belong_to_setof (const SetOf< Full3D > &set) const
std::list< SetOf< Full3D > * > &	get_setof_list ()
unsigned long long int	get_numeric_ID () const

Static Public Member Functions
static Full3D &	get ()
	get the singleton instance of the periodic boundaries More...
Static Public Member Functions inherited from GranOO3::DEM::PeriodicBoundary
static PeriodicBoundary &	get ()
	get the singleton instance of the periodic boundaries More...
Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)
static void	clear_all_numID ()
static unsigned int	get_sub_class_number ()
Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)
static void	set_draw_precision (unsigned int p)
static void	increase_draw_precision ()
static void	decrease_draw_precision ()
static unsigned int	get_draw_precision ()

Private Member Functions
	Full3D (const Full3D &)=delete
Full3D &	operator= (const Full3D &)=delete
template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the periodic boundary in the *.gdd format More...

Private Attributes
Geom::Vector	_a
	a vector, representing the length along x More...
Geom::Vector	_b
	a vector, representing the length along y More...
Geom::Vector	_c
	a vector, representing the length along z More...

Static Private Attributes
static Full3D *	_me = nullptr
	a pointer to the singleton More...

Friends
class	boost::serialization::access

Additional Inherited Members
Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()
Protected Member Functions inherited from GranOO3::DEM::PeriodicBoundary
template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the FractureFacet in the *.gdd format More...
Protected Member Functions inherited from GranOO3::Core::Base
	Base ()
Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()
Protected Attributes inherited from GranOO3::DEM::PeriodicBoundary
std::function< Geom::Vector(const Geom::Vector &, bool &)>	_periodic_mv_function
	a simple function for moving master elements from one boundary to another More...
std::vector< std::function< Geom::Vector(const Geom::Vector &)> >	_follow_master_function
	a list of simple functions for moving slave elements considering the master More...
Protected Attributes inherited from GranOO3::Core::PropClass< PeriodicBoundary >
std::vector< Core::Prop< PeriodicBoundary > * >	_prop
Protected Attributes inherited from GranOO3::Core::PropClass< Full3D >
std::vector< Core::Prop< Full3D > * >	_prop

Detailed Description

a singleton virtual class for representing periodic boundaries

This class represent a full 3D periodic boundary. It simply represents a box where each opposite faces periodic. The length and direction of the box are stored in three vectors _a, _b, and _c. Initially these vectors are perpendicular unit vector. The magnitude of these vectors can be changed to match the length of the box. In addition, the angle between vector (initially equal de 90 degree) can be changed to distort the domain.

Constructor & Destructor Documentation

Full3D() [1/2]

GranOO3::DEM::Full3D::Full3D

(

)

constructor

~Full3D()

GranOO3::DEM::Full3D::~Full3D ( )

virtual

destructor

Full3D() [2/2]

GranOO3::DEM::Full3D::Full3D ( const Full3D &  )

privatedelete

Member Function Documentation

distort_on_x()

void GranOO3::DEM::Full3D::distort_on_x

(

double

angle

)

distort the periodic domain along x

Parameters

[in]

angle

: the angle value for distorting the domain

This method apply a distorsion angle along x to the domain. Applying a distorsion angle lead to deform the periodic box to a configuration where the _b and _c are not perpendicular. After applying a distortion angle, the angle between _b and _c is 90° - angle. This method can be used for applying pure shear in a periodic domain.

distort_on_y()

void GranOO3::DEM::Full3D::distort_on_y

(

double

angle

)

distort the periodic domain along y

Parameters

[in]

angle

: the angle value for distorting the domain

This method apply a distorsion angle along y to the domain. Applying a distorsion angle lead to deform the periodic box to a configuration where the _a and _c are not perpendicular. After applying a distortion angle, the angle between _a and _c is 90° - angle. This method can be used for applying pure shear in a periodic domain.

distort_on_z()

void GranOO3::DEM::Full3D::distort_on_z

(

double

angle

)

distort the periodic domain along z

Parameters

[in]

angle

: the angle value for distorting the domain

This method apply a distorsion angle along z to the domain. Applying a distorsion angle lead to deform the periodic box to a configuration where the _a and _b are not perpendicular. After applying a distortion angle, the angle between _a and _b is 90° - angle. This method can be used for applying pure shear in a periodic domain.

draw()

void GranOO3::DEM::Full3D::draw ( )

virtual

a pure virtual function to draw the domain

This function is used by the granoo-viewer tool in order to visualize the periodic boundary.

Implements GranOO3::DEM::PeriodicBoundary.

get()

Full3D & GranOO3::DEM::Full3D::get ( )

static

get the singleton instance of the periodic boundaries

get_lx()

double GranOO3::DEM::Full3D::get_lx

(

)

const

get the length of the periodic box along x

Returns

the periodic length

This method return the norm of the _a vector

get_ly()

double GranOO3::DEM::Full3D::get_ly

(

)

const

get the length of the periodic box along y

Returns

the periodic length

This method return the norm of the _b vector

get_lz()

double GranOO3::DEM::Full3D::get_lz

(

)

const

get the length of the periodic box along z

Returns

the periodic length

This method return the norm of the _c vector

info()

std::string GranOO3::DEM::Full3D::info ( ) const

virtual

get some info on the periodic bounday

Returns

a string that contains some info

Reimplemented from GranOO3::DEM::PeriodicBoundary.

init_function()

void GranOO3::DEM::Full3D::init_function ( )

virtual

a function that must be triggered to initialize the periodic boundary

This function must be triggered in order to initialize the _follow_master_function of the base class PeriodicBoundary

Implements GranOO3::DEM::PeriodicBoundary.

operator=()

Full3D& GranOO3::DEM::Full3D::operator= ( const Full3D &  )

privatedelete

read_ascii()

std::istream & GranOO3::DEM::Full3D::read_ascii ( std::istream &  is )

virtual

update the current state of periodic boundary from an ascii file format *.lgdd

Parameters

[in]

is

: the stream where the data are read

Returns

the stream

See also

the Domain classes to get additional info about I/O

TODO, this feature is not yet implemented (only gdd file are supported)

Reimplemented from GranOO3::DEM::PeriodicBoundary.

scale_bounding_box()

void GranOO3::DEM::Full3D::scale_bounding_box

(

double

factor

)

apply an expansion factor to the length of the periodic box

Parameters

[in]

factor

: the expansion factor to apply

This function simply apply a factor to the length _a, _b, _c, of the periodic box. If the factor is higher than 1, the periodic box expands and it contracts otherwise.

serialize()

template<class Archive >

void GranOO3::DEM::Full3D::serialize ( Archive &  ar, const unsigned int  version  )

private

complete serializing of the periodic boundary in the *.gdd format

See also

the Domain classes to get additional info about I/O

set_bounding_box() [1/2]

void GranOO3::DEM::Full3D::set_bounding_box

(

const Shape::Box &

box

)

set the length of the periodic box

Parameters

[in]

box

: a box that will be taken as model

This function simply set the length _a, _b, _c, of the periodic box

set_bounding_box() [2/2]

void GranOO3::DEM::Full3D::set_bounding_box	(	double	lx,
		double	ly,
		double	lz
	)

set the length of the periodic box

Parameters

[in]	lx	: the length along x for setting _a
[in]	ly	: the length along y for setting _b
[in]	lz	: the length along z for setting _c

This function simply set the length _a, _b, _c, of the periodic box

set_length_on_x()

void GranOO3::DEM::Full3D::set_length_on_x

(

double

value

)

set the length of the periodic box along x

Parameters

[in]

value

: the length value

This method set the length along x, it simply set the norm of _a vector to the value

set_length_on_y()

void GranOO3::DEM::Full3D::set_length_on_y

(

double

value

)

set the length of the periodic box along y

Parameters

[in]

value

: the length value

This method set the length along y, it simply set the norm of _b vector to the value

set_length_on_z()

void GranOO3::DEM::Full3D::set_length_on_z

(

double

value

)

set the length of the periodic box along z

Parameters

[in]

value

: the length value

This method set the length along z, it simply set the norm of _c vector to the value

write_ascii()

std::ostream & GranOO3::DEM::Full3D::write_ascii ( std::ostream &  os ) const

virtual

dump the current state of the periodic boundary in a ascii file (standard *.lgdd format)

Parameters

[in]

os

: the stream where the data will be written

Returns

the stream (with the expected additional data)

See also

the Domain classes to get additional info about I/O

TODO, this feature is not yet implemented (only gdd file are supported)

Reimplemented from GranOO3::DEM::PeriodicBoundary.

Friends And Related Function Documentation

boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

_a

Geom::Vector GranOO3::DEM::Full3D::_a

private

a vector, representing the length along x

The vector is initially along the global x axis. However, this direction could change a little bit if you apply a distorsion.

_b

Geom::Vector GranOO3::DEM::Full3D::_b

private

a vector, representing the length along y

The vector is initially along the global y axis. However, this direction could change a little bit if you apply a distorsion.

_c

Geom::Vector GranOO3::DEM::Full3D::_c

private

a vector, representing the length along z

The vector is initially along the global z axis. However, this direction could change a little bit if you apply a distorsion.

_me

Full3D * GranOO3::DEM::Full3D::_me = nullptr

staticprivate

a pointer to the singleton

---

The documentation for this class was generated from the following files:

• /home/granoo/granoo/Lib/GranOO3/DEM/PeriodicBoundary/Full3D.hpp
• /home/granoo/granoo/Lib/GranOO3/DEM/PeriodicBoundary/Full3D.cpp
• /home/granoo/granoo/Lib/GranOO3/DEM/PeriodicBoundary/Full3D.dox
