GranOO3::DEM::PeriodicBoundary Class Reference

a singleton virtual class for representing periodic boundaries More...

#include <PeriodicBoundary.hpp>

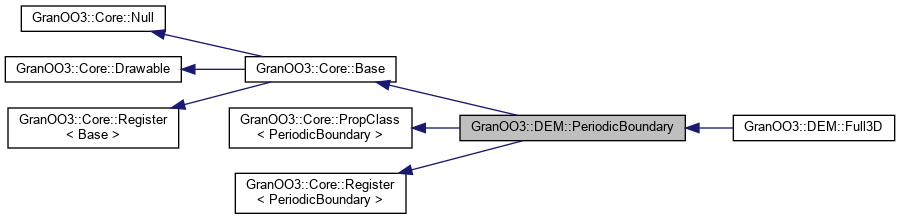

Inheritance diagram for GranOO3::DEM::PeriodicBoundary:

Public Member Functions
	PeriodicBoundary ()
	constructor More...
virtual	~PeriodicBoundary ()
	destructor More...
virtual void	init_function ()=0
	a pure virtual function that must be overridden More...
virtual void	draw ()=0
	a pure virtual function to draw the domain More...
void	make_periodic (Element &el)
	a function that transforms a normal element into a periodic master element with its related slaves More...
void	init_periodic_object ()
	a function that initializes all the Periodic instances More...
void	retrieve_slave ()
void	clean_slave_element_without_master ()
virtual std::string	info () const
	a util method to get some info More...
std::function< Geom::Vector(const Geom::Vector &, bool &)> &	get_periodic_mv_function ()
	get the move function More...
std::function< Geom::Vector(const Geom::Vector &)> &	get_follow_master_function (unsigned int rank)
	get the "follow master" More...
virtual std::ostream &	write_ascii (std::ostream &out) const
virtual std::istream &	read_ascii (std::istream &in)
Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()
size_t	numID () const
size_t	uID () const
void	set_numID (size_t val)
void	clear_numID ()
Physic::Material &	get_mat () const
void	set_mat (Physic::Material *)
Base &	item ()
const Base &	item () const
bool	is_same (const Base &) const
template<class T >
T &	cast_to ()
template<class T >
const T &	cast_to () const
template<class T >
bool	is () const
virtual bool	is (size_t) const
virtual const std::string &	get_ID () const
virtual Base &	clone ()
template<class T >
T &	clone_to ()
virtual std::ostream &	export_to_povray (std::ostream &out) const
Signal< Base & > &	deleted_signal ()
Public Member Functions inherited from GranOO3::Core::Null
	Null ()
virtual	~Null ()
Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()
virtual	~Drawable ()
virtual void	draw_edge ()
virtual void	init_default_color ()
virtual std::ostream &	get_info (std::ostream &os) const
virtual const Color &	default_color () const
Color &	get_color ()
const Color &	get_color () const
virtual void	set_color (const Color &)
virtual void	set_alpha (float alpha)
void	apply_color () const
void	apply_edge_color () const
void	apply_default_color ()
void	apply_selected_color ()
void	set_line_width (float)
float	get_line_width () const
float &	get_line_width ()
void	apply_line_width () const
bool	is_visible () const
void	set_visible (bool)
void	paint ()
void	paint_edge ()
unsigned int	get_item_glkey () const
Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()
virtual	~Register ()
void	erase_from_all_setof ()
bool	belong_to_setof (const std::string &setOfId) const
bool	belong_to_setof (const SetOf< Base > &set) const
std::list< SetOf< Base > * > &	get_setof_list ()
unsigned long long int	get_numeric_ID () const
Public Member Functions inherited from GranOO3::Core::PropClass< PeriodicBoundary >
	PropClass ()
virtual	~PropClass ()
T &	new_object ()
T &	get ()
const T &	get () const
bool	prop_exist () const
void	add_prop (Core::Prop< PeriodicBoundary > *)
void	remove_prop (Core::Prop< PeriodicBoundary > *)
std::string	info () const
Public Member Functions inherited from GranOO3::Core::Register< PeriodicBoundary >
	Register ()
virtual	~Register ()
void	erase_from_all_setof ()
bool	belong_to_setof (const std::string &setOfId) const
bool	belong_to_setof (const SetOf< PeriodicBoundary > &set) const
std::list< SetOf< PeriodicBoundary > * > &	get_setof_list ()
unsigned long long int	get_numeric_ID () const

Static Public Member Functions
static PeriodicBoundary &	get ()
	get the singleton instance of the periodic boundaries More...
Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)
static void	clear_all_numID ()
static unsigned int	get_sub_class_number ()
Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)
static void	set_draw_precision (unsigned int p)
static void	increase_draw_precision ()
static void	decrease_draw_precision ()
static unsigned int	get_draw_precision ()

Protected Member Functions
template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the FractureFacet in the *.gdd format More...
Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Protected Attributes
std::function< Geom::Vector(const Geom::Vector &, bool &)>	_periodic_mv_function
	a simple function for moving master elements from one boundary to another More...
std::vector< std::function< Geom::Vector(const Geom::Vector &)> >	_follow_master_function
	a list of simple functions for moving slave elements considering the master More...
Protected Attributes inherited from GranOO3::Core::PropClass< PeriodicBoundary >
std::vector< Core::Prop< PeriodicBoundary > * >	_prop

Private Member Functions
	PeriodicBoundary (const PeriodicBoundary &)=delete
PeriodicBoundary &	operator= (const PeriodicBoundary &)=delete

Static Private Attributes
static PeriodicBoundary *	_me = nullptr
	a pointer to the singleton More...

Friends
class	boost::serialization::access

Additional Inherited Members
Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()
Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Detailed Description

a singleton virtual class for representing periodic boundaries

This class is the main entry point for managing periodic boundaries with GranOO. When you manage periodic boundaries, you should consider "slave" and "master" elements. The master elements are the main elements which are inside the boundary whereas the slave elements are some kind of clones of the master elements. For example, within a Full3D periodic boundaries (using parallelepipedic domains) a single master element has 27 slave elements. A master element could interact with a slave element by contacts or bonds. When a master element crosses a boundary, he is immediately "teleported" to the other front boundary. Note that, slave elements have similar displacements, velocities, masses and so on, from their master elements. If you want to accede to master element and slave elements, you can retrieve them with the "Master" and "Slave" IDs SetOf

Note that this class is purely virtual. You can override this class to implement different kind of periodic boundaries. The available periodic boundaries are located into the PeriodicBoundary folder. Note that a property called Periodic is associated to Element in order to manage periodic boundaries.

Constructor & Destructor Documentation

PeriodicBoundary() [1/2]

GranOO3::DEM::PeriodicBoundary::PeriodicBoundary

(

)

constructor

~PeriodicBoundary()

GranOO3::DEM::PeriodicBoundary::~PeriodicBoundary ( )

virtual

destructor

PeriodicBoundary() [2/2]

GranOO3::DEM::PeriodicBoundary::PeriodicBoundary ( const PeriodicBoundary &  )

privatedelete

Member Function Documentation

clean_slave_element_without_master()

void GranOO3::DEM::PeriodicBoundary::clean_slave_element_without_master

(

)

draw()

void GranOO3::DEM::PeriodicBoundary::draw ( )

pure virtual

a pure virtual function to draw the domain

This function is used by the granoo-viewer tool in order to visualize the periodic boundary.

Reimplemented from GranOO3::Core::Drawable.

Implemented in GranOO3::DEM::Full3D.

get()

PeriodicBoundary & GranOO3::DEM::PeriodicBoundary::get ( )

static

get the singleton instance of the periodic boundaries

get_follow_master_function()

std::function< Geom::Vector(const Geom::Vector &)> & GranOO3::DEM::PeriodicBoundary::get_follow_master_function ( unsigned int  rank )

inline

get the "follow master"

Parameters

[in]

the

rank of the wanted "follow master" function

Returns

simply returns the _follow_master_function located at the rank rank

get_periodic_mv_function()

std::function< Geom::Vector(const Geom::Vector &, bool &)> & GranOO3::DEM::PeriodicBoundary::get_periodic_mv_function ( )

inline

get the move function

Returns

simply returns the _periodic_mv_function attribute

info()

std::string GranOO3::DEM::PeriodicBoundary::info ( ) const

virtual

a util method to get some info

Returns

some info

Reimplemented from GranOO3::Core::Base.

Reimplemented in GranOO3::DEM::Full3D.

init_function()

void GranOO3::DEM::PeriodicBoundary::init_function ( )

pure virtual

a pure virtual function that must be overridden

This function must be overridden in order to initialize the _follow_master_function

Implemented in GranOO3::DEM::Full3D.

init_periodic_object()

void GranOO3::DEM::PeriodicBoundary::init_periodic_object

(

)

a function that initializes all the Periodic instances

This method must be used once, just before running a periodic simulation. For instance, it is used in the initialization method of ApplyPeriodicCondition plugin.

make_periodic()

void GranOO3::DEM::PeriodicBoundary::make_periodic

(

Element &

el

)

a function that transforms a normal element into a periodic master element with its related slaves

Parameters

[in]

el

: a regular element to transform into a periodic one

This method does the following things :

• transforms the el element into a master element
• clones the el element (making slave elements)
• associates DEM::Periodic properties to the master and slave elements
  Note that this method must be called in order to transform a normal simulation with regular boundaries into a periodic simulation with periodic boundaries.


operator=()

PeriodicBoundary& GranOO3::DEM::PeriodicBoundary::operator= ( const PeriodicBoundary &  )

privatedelete

read_ascii()

std::istream & GranOO3::DEM::PeriodicBoundary::read_ascii ( std::istream &  in )

virtual

Reimplemented from GranOO3::Core::Base.

Reimplemented in GranOO3::DEM::Full3D.

retrieve_slave()

void GranOO3::DEM::PeriodicBoundary::retrieve_slave

(

)

serialize()

template<class Archive >

void GranOO3::DEM::PeriodicBoundary::serialize ( Archive &  ar, const unsigned int  version  )

protected

complete serializing of the FractureFacet in the *.gdd format

See also

the Domain classes to get additional info about I/O

write_ascii()

std::ostream & GranOO3::DEM::PeriodicBoundary::write_ascii ( std::ostream &  out ) const

virtual

Reimplemented from GranOO3::Core::Base.

Reimplemented in GranOO3::DEM::Full3D.

Friends And Related Function Documentation

boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

_follow_master_function

std::vector< std::function< Geom::Vector(const Geom::Vector &)> > GranOO3::DEM::PeriodicBoundary::_follow_master_function

protected

a list of simple functions for moving slave elements considering the master

This vector contains a list of function which are used for moving the slave elements. Here, a list must be used as several slaves are considered for a single master element. For instance, for the Full3D periodic condition, 27 functions (one per slave) must be present. Each of these functions are passed to the Periodic property and are is mainly used by the Periodic::follow_master_motion() method which is called by the ApplyPeriodicCondition plugin.

Each of these functions takes a Geom::Vector as input which corresponds to the current position of the master element and returns the position of the considered slave element.

_me

PeriodicBoundary * GranOO3::DEM::PeriodicBoundary::_me = nullptr

staticprivate

a pointer to the singleton

_periodic_mv_function

std::function< Geom::Vector(const Geom::Vector &, bool &)> GranOO3::DEM::PeriodicBoundary::_periodic_mv_function

protected

a simple function for moving master elements from one boundary to another

This function is used to move a master element from one boundary to another one (also called teleportation). In fact, this function is passed to the Periodic property is mainly used by the Periodic::teleport_master() method which is called by the ApplyPeriodicCondition plugin.

For now, this teleportation feature is just activated for pure granular simulation without bonds. Managing bonds with teleportation is not yet supported. However, it is not really problem as bonded domains represent continuum domain where teleportation is not expected.

This _periodic_mv_function function :

• takes a Geom::Vector as input which corresponds to the current position vector of the element
• returns the new position of the considered element
• note that the boolean parameters is used as output for telling if the considered element must be teleported or not


---

The documentation for this class was generated from the following files:

• /home/granoo/granoo/Lib/GranOO3/DEM/PeriodicBoundary.hpp
• /home/granoo/granoo/Lib/GranOO3/DEM/PeriodicBoundary.cpp
• /home/granoo/granoo/Lib/GranOO3/DEM/PeriodicBoundary.dox
