a base class that represents a rigid body with various shape into a discrete element simulation More...

#include <Tool.hpp>

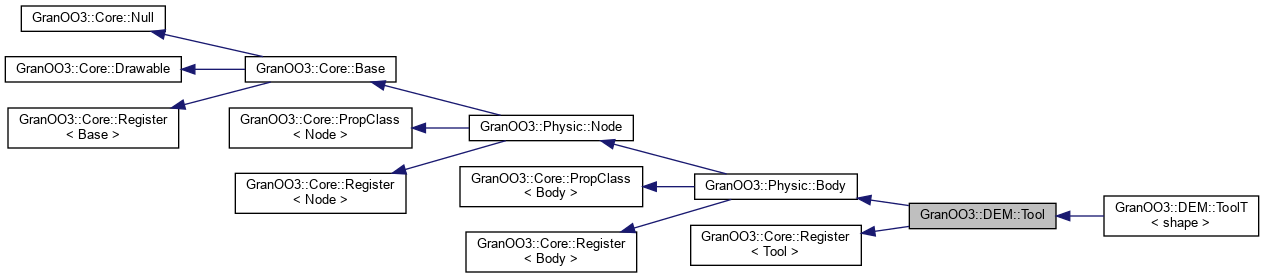

Inheritance diagram for GranOO3::DEM::Tool:

[legend]

Public Member Functions
	Tool (Shape::Volume &shape, const std::string &ID, const Geom::Point &p, const Geom::Quaternion &q, double mass, const Geom::Tensor &inertia)
	constructor More...

	Tool (Shape::Volume &shape)
	constructor More...

virtual	~Tool ()=0
	destructor More...

virtual void	read_xml_element (const TiXmlElement *el)
	read an xml element More...

virtual void	add_glob (const std::string &)=0
	util method for reading an xml element More...

virtual void	draw ()=0
	OpenGL draw of the bond More...

virtual std::string	info () const

virtual std::string	shape_class_ID () const =0
	get the class ID of the tool ("Cylinder", "Cone", etc...) More...

virtual std::ostream &	write_ascii (std::ostream &out) const
	dump the current state of the tool in a ascii file (standard *.lgdd format) More...

virtual std::istream &	read_ascii (std::istream &in)
	update the current state of the element from an ascii file format *.lgdd More...

virtual std::ostream &	write_ascii_shape (std::ostream &out) const =0
	for internal use only (.agdd compatibility) More...

virtual std::istream &	read_ascii_shape (std::istream &in)=0
	for internal use only (.agdd compatibility) More...

Public Member Functions inherited from GranOO3::Physic::Body
	Body (Shape::Volume &shape, const Geom::Point &p, const Geom::Quaternion &q, double mass, const Geom::Tensor &inertia)
	constructor More...

	Body (Shape::Volume &shape, const Geom::Point &p)
	constructor More...

	Body (Shape::Volume &shape)
	constructor More...

virtual	~Body ()=0
	destructor More...

void	set_inertia_tensor (const Geom::Tensor &inertia)
	set the inertia tensor value More...

void	set_density (double density)
	set the density value More...

Geom::Vector	compute_torque_at (const Geom::Point &A) const

double	get_kinetic_energy () const

double	get_mass () const
	get the current mass value of the body More...

void	apply_force_at (const Geom::Vector &, const Geom::Point &)

const Shape::Volume &	to_volume_shape () const
	cast the current object to Shape::Volume More...

Shape::Volume &	to_volume_shape ()
	cast the current object to Shape::Volume More...

double	get_volume () const
	get the current volume of the body More...

double	get_bounding_radius () const
	get the current bounding radius of the body More...

AABB	aabb () const
	get the aabb tree the body More...

bool	collide (const Body &other, Collision::Data &col)
	collision detection with another body More...

bool	collide (const Body &other)
	collision detection with another body More...

void	make_equal_to (const Body &other)
	for equalizing two bodies More...

std::string	info () const
	Display some useful info in the terminal More...

virtual std::ostream &	export_to_povray (std::ostream &out) const
	exporting to povray format More...

Public Member Functions inherited from GranOO3::Physic::Node
	Node (const Geom::Vector &position)

	Node (const Geom::Point &position)

	Node ()

virtual	~Node ()

void	clear_force ()

void	clear_torque ()

const Geom::Frame &	local_frame () const

void	incremental_move (const Geom::Vector &vec)

void	incremental_unmove (const Geom::Vector &vec)

void	update_position_from_displacement ()

void	update_displacement_from_position ()

void	set_displacement (const Geom::Vector &)

void	clear_displacement ()

void	set_displacement_x (const double &)

void	set_displacement_y (const double &)

void	set_displacement_z (const double &)

void	set_position (const Geom::Vector &)

void	set_position_x (const double &)

void	set_position_y (const double &)

void	set_position_z (const double &)

void	set_center (const Geom::Point &)

void	update_initial_parameter_to_current_parameter ()

void	update_from_fem ()

void	update_from_dem ()

void	add_interaction (Node &)

void	erase_interaction (Node &)

bool	interact_with (const Node &) const

bool	interact_with (const Ground &) const

bool	interact_with (const FEM::Surface &) const

void	apply_force (const Geom::Vector &)

void	apply_torque (const Geom::Vector &)

void	set_quaternion_velocity_from_angular_velocity (const Geom::Vector &angularVelocity)

void	set_quaternion_acceleration_from_angular_acceleration (const Geom::Vector &angularAcceleration, const Geom::Vector &angularVelocity)

void	update_angular_velocity ()

virtual void	clear_kinematic ()

Geom::Vector	get_linear_velocity_at (const Geom::Point &) const

void	make_equal_to (const Node &)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::PropClass< Node >
	PropClass ()

virtual	~PropClass ()

T &	new_object ()

T &	get ()

const T &	get () const

bool	prop_exist () const

void	add_prop (Core::Prop< Node > *)

void	remove_prop (Core::Prop< Node > *)

std::string	info () const

Public Member Functions inherited from GranOO3::Core::Register< Node >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Node > &set) const

std::list< SetOf< Node > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::PropClass< Body >
	PropClass ()

virtual	~PropClass ()

T &	new_object ()

T &	get ()

const T &	get () const

bool	prop_exist () const

void	add_prop (Core::Prop< Body > *)

void	remove_prop (Core::Prop< Body > *)

std::string	info () const

Public Member Functions inherited from GranOO3::Core::Register< Body >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Body > &set) const

std::list< SetOf< Body > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< Tool >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Tool > &set) const

std::list< SetOf< Tool > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Static Public Member Functions
static Tool &	get (const std::string &ID)
	retrieve a tool with a given `ID` More...

static bool	exist (const std::string &ID)
	check if the tool with the `ID` exists More...

static Tool &	glob (const std::string &ID)
	similar as get(const std::string& ID) More...

static Tool *	new_object (const TiXmlElement *el)
	instantiate a new tool from the xml input file More...

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Protected Member Functions
	Tool ()
	default constructor (for internal use only with seriaization) More...

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Private Member Functions
	Tool (const Tool &)=delete

Tool &	operator= (const Tool &)=delete

template<class Archive >
void	save (Archive &, const unsigned int) const
	complete serializing of the element in the *.gdd format More...

template<class Archive >
void	load (Archive &, const unsigned int)
	complete serializing of the element in the *.gdd format More...

	BOOST_SERIALIZATION_SPLIT_MEMBER ()

Private Attributes
std::string	_ID
	the unique ID of the tool More...

Friends
class	boost::serialization::access

Additional Inherited Members
Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Protected Attributes inherited from GranOO3::Physic::Body
double	_density
	the density value of the body More...

double	_mass
	the mass value of the body More...

Geom::Tensor	_inertia_tensor
	the inertia tensor of the body More...

Geom::Tensor	_inverse_inertia_tensor
	the inverse of the inertia tensor of the body More...

Protected Attributes inherited from GranOO3::Core::PropClass< Node >
std::vector< Core::Prop< Node > * >	_prop

Protected Attributes inherited from GranOO3::Core::PropClass< Body >
std::vector< Core::Prop< Body > * >	_prop

Detailed Description

a base class that represents a rigid body with various shape into a discrete element simulation

Be aware, an Tool has no associated shape, so this is a pure virtual class. A shape is associated to an Tool through its child template class ToolT. Note that The Tool are included into the dynamic simulation as it derives from the Physic::Body class.

Constructor & Destructor Documentation

◆ Tool() [1/4]

GranOO3::DEM::Tool::Tool	(	Shape::Volume &	shape,
		const std::string &	ID,
		const Geom::Point &	p,
		const Geom::Quaternion &	q,
		double	mass,
		const Geom::Tensor &	inertia
	)

constructor

Parameters

[in]	shape	: the shape to clone
[in]	ID	: the ID of the tool (must be unique)
[in]	p	: initial position of the tool
[in]	q	: initial orientation of the tool
[in]	mass	: mass of the tool
[in]	inertia	: inertia tensor of the tool

Construct a new Tool and set directly its lengths, string ID, position, orientation, mass and inertia.

◆ Tool() [2/4]

GranOO3::DEM::Tool::Tool ( Shape::Volume & shape )

constructor

Parameters

[in] shape : the shape to clone

Construct a new Tool. The tool is aligned with the global frame (see Geom::Frame::global). Its mass and inertia are set to zero.

◆ ~Tool()

GranOO3::DEM::Tool::~Tool ( )

pure virtual

destructor

◆ Tool() [3/4]

GranOO3::DEM::Tool::Tool ( const Tool & )

privatedelete

◆ Tool() [4/4]

GranOO3::DEM::Tool::Tool ( )

protected

default constructor (for internal use only with seriaization)

Member Function Documentation

◆ add_glob()

void GranOO3::DEM::Tool::add_glob ( const std::string & ID )

pure virtual

util method for reading an xml element

Parameters

[in] ID : the ID of the tool

Note that this method is mainly for internal use (XML parsing process).

◆ BOOST_SERIALIZATION_SPLIT_MEMBER()

GranOO3::DEM::Tool::BOOST_SERIALIZATION_SPLIT_MEMBER ( )

private

◆ draw()

void GranOO3::DEM::Tool::draw ( )

pure virtual

OpenGL draw of the bond

This method is used for drawing the bond. It is used by the granoo-viewer vizualization tool

Reimplemented from GranOO3::Physic::Node.

Implemented in GranOO3::DEM::ToolT< shape >.

◆ exist()

bool GranOO3::DEM::Tool::exist ( const std::string & ID )

inlinestatic

check if the tool with the ID exists

Parameters

[in] ID : the ID of the tool

Returns: : true if a tool corresponds to the given ID, false otherwise.n.

◆ get()

Tool & GranOO3::DEM::Tool::get ( const std::string & ID )

inlinestatic

retrieve a tool with a given ID

Parameters

[in] ID : the ID of the tool

Returns: : a tool that corresponds to the given ID

Note that if no Tool exists, this method raises an assertion.

◆ glob()

Tool & GranOO3::DEM::Tool::glob ( const std::string & ID )

static

similar as get(const std::string& ID)

Parameters

[in] ID : the ID of the tool

Returns: : a tool that corresponds to the given ID

Note that this method is mainly for internal use (XML parsing process).

◆ info()

std::string GranOO3::DEM::Tool::info ( ) const

inlinevirtual

Returns: some useful info about the instance

Reimplemented from GranOO3::Physic::Node.

Reimplemented in GranOO3::DEM::ToolT< shape >.

◆ load()

template<class Archive >

void GranOO3::DEM::Tool::load	(	Archive &	ar,
		const unsigned int
	)

private

complete serializing of the element in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ new_object()

Tool * GranOO3::DEM::Tool::new_object ( const TiXmlElement * el )

static

instantiate a new tool from the xml input file

Parameters

[in] el : the xml element that describes the tool

Returns: : a new instance of tool

Note that this method is mainly for internal use (XML parsing process).

◆ operator=()

Tool& GranOO3::DEM::Tool::operator= ( const Tool & )

privatedelete

◆ read_ascii()

std::istream & GranOO3::DEM::Tool::read_ascii ( std::istream & is )

virtual

update the current state of the element from an ascii file format *.lgdd

Parameters

[in] is : the stream where the data are read

Returns: the stream

See also: the Domain classes to get additional info about I/O

Reimplemented from GranOO3::Physic::Body.

Reimplemented in GranOO3::DEM::ToolT< shape >.

◆ read_ascii_shape()

std::istream & GranOO3::DEM::Tool::read_ascii_shape ( std::istream & in )

pure virtual

for internal use only (.agdd compatibility)

Implemented in GranOO3::DEM::ToolT< shape >.

◆ read_xml_element()

void GranOO3::DEM::Tool::read_xml_element ( const TiXmlElement * el )

virtual

read an xml element

Parameters

[in] el : the xml element that describes the tool

Note that this method is mainly for internal use (XML parsing process).

Reimplemented in GranOO3::DEM::ToolT< shape >.

◆ save()

template<class Archive >

void GranOO3::DEM::Tool::save	(	Archive &	ar,
		const unsigned int
	)		const

private

complete serializing of the element in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ shape_class_ID()

std::string GranOO3::DEM::Tool::shape_class_ID ( ) const

pure virtual

get the class ID of the tool ("Cylinder", "Cone", etc...)

Returns: the shape class ID

Implemented in GranOO3::DEM::ToolT< shape >.

◆ write_ascii()

std::ostream & GranOO3::DEM::Tool::write_ascii ( std::ostream & os ) const

virtual

dump the current state of the tool in a ascii file (standard *.lgdd format)

Parameters

[in] os : the stream where the data will be written

Returns: the stream (with the expected additional data)

See also: the Domain classes to get additional info about I/O

Reimplemented from GranOO3::Physic::Body.

Reimplemented in GranOO3::DEM::ToolT< shape >.

◆ write_ascii_shape()

std::ostream & GranOO3::DEM::Tool::write_ascii_shape ( std::ostream & out ) const

pure virtual

for internal use only (.agdd compatibility)

Implemented in GranOO3::DEM::ToolT< shape >.

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _ID

std::string GranOO3::DEM::Tool::_ID

private

the unique ID of the tool

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Tool.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Tool.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Tool.dox

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Tool() [1/4]

◆ Tool() [2/4]

◆ ~Tool()

◆ Tool() [3/4]

◆ Tool() [4/4]

Member Function Documentation

◆ add_glob()

◆ BOOST_SERIALIZATION_SPLIT_MEMBER()

◆ draw()

◆ exist()

◆ get()

◆ glob()

◆ info()

◆ load()

◆ new_object()

◆ operator=()

◆ read_ascii()

◆ read_ascii_shape()

◆ read_xml_element()

◆ save()

◆ shape_class_ID()

◆ write_ascii()

◆ write_ascii_shape()

Friends And Related Function Documentation

◆ boost::serialization::access

Member Data Documentation

◆ _ID
