a class that represents a generic physical interaction between two bodies More...

#include <BodyInteraction.hpp>

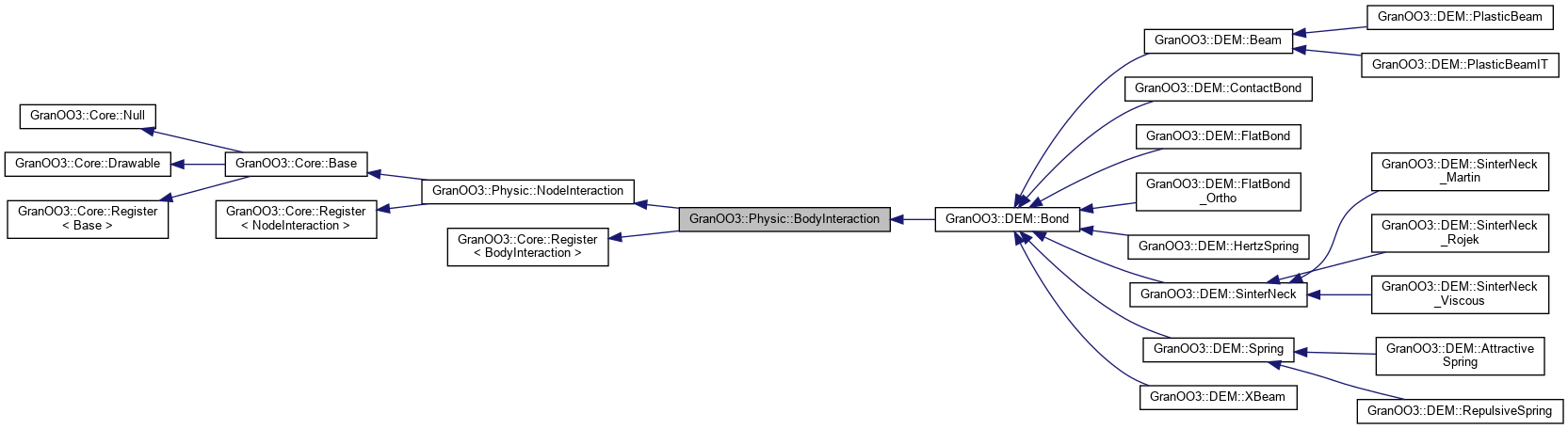

Inheritance diagram for GranOO3::Physic::BodyInteraction:

[legend]

Public Member Functions
	BodyInteraction (Body &b1, Body &b2, bool contact_interaction)
	constructor More...

virtual	~BodyInteraction ()
	destructor More...

void	apply_torque ()
	apply the current torque value More...

void	clear_torque ()
	set the torques to zero More...

Geom::Vector &	torque_on (const Body &b)
	get the torque value applied on `b` More...

const Geom::Vector &	torque_on (const Body &b) const
	same as BodyInteraction::torque_on More...

void	add_label_torque (const std::string &label, const Geom::Vector &t1, const Geom::Vector &t2)
	add a label for the torque More...

void	swap (Body &from, Body &to)
	swap one body More...

Public Member Functions inherited from GranOO3::Physic::NodeInteraction
	NodeInteraction (Node &de1, Node &de2, bool build_node_interaction)

virtual	~NodeInteraction ()

bool	contact_interaction () const

void	apply_force ()

void	clear_force ()

Geom::Vector &	force_on (const Node &)

const Geom::Vector &	force_on (const Node &) const

void	swap (Node &from, Node &to)

virtual std::ostream &	write_ascii (std::ostream &out) const

void	add_label_force (const std::string &label, const Geom::Vector &f1, const Geom::Vector &f2)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

virtual std::string	info () const

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::istream &	read_ascii (std::istream &in)

virtual std::ostream &	export_to_povray (std::ostream &out) const

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< NodeInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< NodeInteraction > &set) const

std::list< SetOf< NodeInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BodyInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BodyInteraction > &set) const

std::list< SetOf< BodyInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Protected Attributes
Body *	_body1
	a pointer the first body More...

Body *	_body2
	a pointer the second body More...

Geom::Vector	_torque_on1
	the current value of the applied torque on the body 1 More...

Geom::Vector	_torque_on2
	the current value of the applied torque on the body 2 More...

Protected Attributes inherited from GranOO3::Physic::NodeInteraction
const bool	_contact_interaction

Node *	_node1

Node *	_node2

Geom::Vector	_force_on1

Geom::Vector	_force_on2

Private Member Functions
	BodyInteraction ()=delete

	BodyInteraction (const BodyInteraction &frame)=delete

BodyInteraction &	operator= (const BodyInteraction &)=delete

template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the item in the *.gdd format More...

Private Attributes
std::map< std::string, Geom::Vector >	_energy_balance_torque1
	a map of label for computing energy balance (internal usage only) More...

std::map< std::string, Geom::Vector >	_energy_balance_torque2
	a map of label for computing energy balance (internal usage only) More...

Friends
class	boost::serialization::access

Additional Inherited Members
Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Detailed Description

a class that represents a generic physical interaction between two bodies

A Physic::BodyInteraction simply represents a physicial interaction between two bodies. This interaction is generic and the real type of the interaction is unknown at this class level.

Constructor & Destructor Documentation

◆ BodyInteraction() [1/3]

GranOO3::Physic::BodyInteraction::BodyInteraction	(	Body &	b1,
		Body &	b2,
		bool	contact_interaction
	)

constructor

Parameters

[in]	b1	: the first body
[in]	b2	: the second body
[in]	contact_interaction	: a flag to say that the interaction comes from a contact

Construct a new Physic::BodyInteraction with the given parameters. Note that the constructor send a message to its two bodies for registering the interaction.

◆ ~BodyInteraction()

GranOO3::Physic::BodyInteraction::~BodyInteraction ( )

virtual

destructor

Destroying the interaction. Note that the destructor send a message to its two bodies for unregistering the interaction.

◆ BodyInteraction() [2/3]

GranOO3::Physic::BodyInteraction::BodyInteraction ( )

privatedelete

◆ BodyInteraction() [3/3]

GranOO3::Physic::BodyInteraction::BodyInteraction ( const BodyInteraction & frame )

privatedelete

Member Function Documentation

◆ add_label_torque()

void GranOO3::Physic::BodyInteraction::add_label_torque	(	const std::string &	label,
		const Geom::Vector &	t1,
		const Geom::Vector &	t2
	)

add a label for the torque

Parameters

[in]	label	: the label string ID
[in]	t1	: the torque applied on the body 1
[in]	t2	: the torque applied on the body 2

Not documented. This method is used for energy balance computation. It is for internal usage only.

◆ apply_torque()

void GranOO3::Physic::BodyInteraction::apply_torque ( )

apply the current torque value

This method apply the current value (_torque_on1 and _torque_on2) of the torque to the two bodies in interaction.

◆ clear_torque()

void GranOO3::Physic::BodyInteraction::clear_torque ( )

set the torques to zero

This method simply set the torques (_torque_on1 and _torque_on2) to zero.

◆ operator=()

BodyInteraction& GranOO3::Physic::BodyInteraction::operator= ( const BodyInteraction & )

privatedelete

◆ serialize()

template<class Archive >

void GranOO3::Physic::BodyInteraction::serialize	(	Archive &	ar,
		const unsigned int
	)

private

complete serializing of the item in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ swap()

void GranOO3::Physic::BodyInteraction::swap	(	Body &	from,
		Body &	to
	)

swap one body

This method is able to swap (change) one body. It could be used when one of the interacted body changes. Note that this method is experimental.

◆ torque_on() [1/2]

Geom::Vector & GranOO3::Physic::BodyInteraction::torque_on ( const Body & b )

get the torque value applied on b

Parameters

[in] the concerned body (must be _body1 or _body2)

This method simply returns the (_torque_on1 and _torque_on2) depending on the parameter b. Note that if b does not corresponding to one of the 2 registered bodies (_body1 or _body2), an assertion is raised.

◆ torque_on() [2/2]

const Geom::Vector & GranOO3::Physic::BodyInteraction::torque_on ( const Body & b ) const

same as BodyInteraction::torque_on

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _body1

Body * GranOO3::Physic::BodyInteraction::_body1

protected

a pointer the first body

◆ _body2

Body * GranOO3::Physic::BodyInteraction::_body2

protected

a pointer the second body

◆ _energy_balance_torque1

std::map< std::string, Geom::Vector > GranOO3::Physic::BodyInteraction::_energy_balance_torque1

private

a map of label for computing energy balance (internal usage only)

◆ _energy_balance_torque2

std::map< std::string, Geom::Vector > GranOO3::Physic::BodyInteraction::_energy_balance_torque2

private

a map of label for computing energy balance (internal usage only)

◆ _torque_on1

Geom::Vector GranOO3::Physic::BodyInteraction::_torque_on1

protected

the current value of the applied torque on the body 1

◆ _torque_on2

Geom::Vector GranOO3::Physic::BodyInteraction::_torque_on2

protected

the current value of the applied torque on the body 2

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/Physic/BodyInteraction.hpp
/home/granoo/granoo/Lib/GranOO3/Physic/BodyInteraction.cpp
/home/granoo/granoo/Lib/GranOO3/Physic/BodyInteraction.dox
