a special bond that must be used with Voronoi domain in order to model a perfect elastic media More...

#include <FlatBond.hpp>

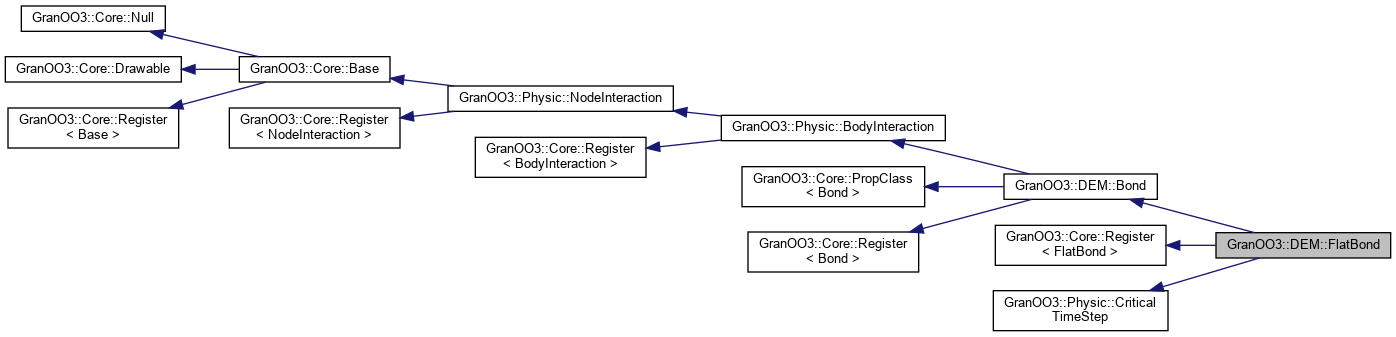

Inheritance diagram for GranOO3::DEM::FlatBond:

[legend]

Public Types
enum	DrawMode { NO_INTERFACE , INTERFACE }

Public Types inherited from GranOO3::DEM::Bond
enum	FailureMode { NONE =0 , TENSION =1 , COMPRESSION =2 , SHEAR =3 }

enum	DrawMode { SOLID , LINE , NO }

Public Member Functions
	FlatBond (Element &el1, Element &el2, bool build_voronoi_bond=true)

	FlatBond (Element &el1, Element &el2, double young_modulus, double poisson_ratio, bool build_voronoi_bond=true)

virtual	~FlatBond ()
	destructor More...

void	update_strain_tensor_and_compute_reaction_force_and_torque ()
	update the reaction force and torque More...

virtual void	compute_load ()
	trigger the computing of the reaction force and torque More...

double	get_linear_stiffness () const
	compute the linear stiffness of the bond More...

double	get_angular_stiffness () const
	similar as get_linear_stiffness() for rotation More...

virtual double	compute_critical_time_step () const
	compute the critical time of the bond More...

virtual std::string	info () const
	Display some useful info in the terminal More...

virtual void	draw ()
	OpenGL draw of the bond More...

Public Member Functions inherited from GranOO3::DEM::Bond
	Bond (Element &el1, Element &el2, bool contact=false)
	Constructor. More...

virtual	~Bond ()=0
	Destructor. More...

Element &	get_item1 ()

const Element &	get_item1 () const

Element &	get_item2 ()

const Element &	get_item2 () const

Element &	item1 ()

Element &	item2 ()

double	get_normal_force_intensity () const

double	get_tangential_force_intensity () const

Element &	bonded_element (const Element &)
	get the bonded element More...

const Element &	get_bonded_element (const Element &) const
	same as bonded_element(const Element&) (provided for convenience) More...

void	apply_linear_damping_factor ()
	compute and apply the linear (translation) damping factor of the bond More...

void	apply_angular_damping_factor ()
	similar as apply_linear_damping_factor() for rotation More...

void	apply_load ()
	apply the computed reaction force and torque to the bonded Element (_element1 and _element2) More...

void	disable (bool manage_slave=true)
	disable the bond More...

void	disable_fast_mode (bool manage_slave=true)
	simply disable the bond by switching the _disabled attribute to true without doing the lot of things done by the disable() method More...

void	enable (bool manage_slave=true)
	simply enable the bond by switching the _disabled attribute to false More...

bool	is_disabled () const
	check if the bond is enable or not More...

void	crack (bool manage_slave=true)

void	uncrack (bool manage_slave=true)

bool	is_cracked () const

void	init_local_frame (bool update_initial_param=false)
	initialize the bond local frame More...

void	update_local_frame ()
	update the bond local frame More...

void	update_current_length ()
	update the current value of the bond length (see _current_length attribute) More...

void	build_voronoi_bond ()
	build a voronoi bond from the current bond More...

virtual void	stiffness_matrix (Eigen::MatrixXd &kMatrix)
	assemble a stiffness matrix More...

virtual void	update_dof ()
	update the bond dof More...

const std::vector< unsigned int > &	get_dof () const
	get the dof vector More...

const Geom::Point &	initial_pos (const Element &) const
	get the initial position of the `el` element More...

Geom::Vector	get_disp (const Element &) const
	get the displacement of the `el` element More...

Geom::Vector	get_disp1 () const
	get the displacement of the first bonded element (_element1) More...

Geom::Vector	get_disp2 () const
	similar as get_disp1() More...

void	swap (Element &from, Element &to)
	swap the bond from the Element `from` to `to` More...

void	add_slave (Bond &b)
	add a slave bond (useful for periodic simulation) More...

virtual std::ostream &	export_to_povray (std::ostream &out) const
	exporting to povray format More...

Public Member Functions inherited from GranOO3::Physic::BodyInteraction
	BodyInteraction (Body &b1, Body &b2, bool contact_interaction)
	constructor More...

virtual	~BodyInteraction ()
	destructor More...

void	apply_torque ()
	apply the current torque value More...

void	clear_torque ()
	set the torques to zero More...

Geom::Vector &	torque_on (const Body &b)
	get the torque value applied on `b` More...

const Geom::Vector &	torque_on (const Body &b) const
	same as BodyInteraction::torque_on More...

void	add_label_torque (const std::string &label, const Geom::Vector &t1, const Geom::Vector &t2)
	add a label for the torque More...

void	swap (Body &from, Body &to)
	swap one body More...

Public Member Functions inherited from GranOO3::Physic::NodeInteraction
	NodeInteraction (Node &de1, Node &de2, bool build_node_interaction)

virtual	~NodeInteraction ()

bool	contact_interaction () const

void	apply_force ()

void	clear_force ()

Geom::Vector &	force_on (const Node &)

const Geom::Vector &	force_on (const Node &) const

void	swap (Node &from, Node &to)

virtual std::ostream &	write_ascii (std::ostream &out) const

void	add_label_force (const std::string &label, const Geom::Vector &f1, const Geom::Vector &f2)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::istream &	read_ascii (std::istream &in)

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< NodeInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< NodeInteraction > &set) const

std::list< SetOf< NodeInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BodyInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BodyInteraction > &set) const

std::list< SetOf< BodyInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::PropClass< Bond >
	PropClass ()

virtual	~PropClass ()

T &	new_object ()

T &	get ()

const T &	get () const

bool	prop_exist () const

void	add_prop (Core::Prop< Bond > *)

void	remove_prop (Core::Prop< Bond > *)

std::string	info () const

Public Member Functions inherited from GranOO3::Core::Register< Bond >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Bond > &set) const

std::list< SetOf< Bond > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< FlatBond >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< FlatBond > &set) const

std::list< SetOf< FlatBond > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Static Public Attributes
static DrawMode	draw_mode = NO_INTERFACE

static bool	update_current_stress = false

static bool	update_current_strain = false

Static Public Attributes inherited from GranOO3::DEM::Bond
static double	epsilon
	a very small value used as a threshold More...

static double	draw_solid_factor

static DrawMode	draw_mode = LINE

static Core::Signal< Bond & >	disable_signal = Core::Signal<Bond&>()
	get the signal when a bond is disabled More...

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Private Member Functions
void	fail (const FailureMode mode)

	FlatBond ()=delete

	FlatBond (const FlatBond &)=delete

FlatBond &	operator= (const FlatBond &)=delete

template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the bond in the *.gdd format More...

Private Attributes
VoronoiBond *	_voronoi_bond
	a pointer to the associated VoronoiBond property More...

bool	_manage_crack_closure

double	_young_modulus
	the Young's modulus value of the flatbond in [Pa] More...

double	_poisson_ratio
	the Poisson's ratio of the flatbond in [-] More...

double	_friction_coeff

double	_maximum_tensile_stress
	the maximal tensile stress of the flatbond in [Pa] More...

double	_maximum_compressive_stress
	the maximal compressive stress of the flatbond in [Pa] More...

double	_maximum_shear_stress

Geom::Point	_FC1
	the center of the voronoi facet expressed in the el1 local frame More...

Geom::Point	_FC2
	the center of the voronoi facet expressed in the el2 local frame More...

Geom::Vector	_current_stress_vector
	the current value of the stress vector with the normal perpendicular to the Voronoi facet More...

double	_current_normal_stress

double	_current_shear_stress

Geom::SymTensor	_current_stress_tensor

Geom::SymTensor	_current_strain_tensor

Friends
class	boost::serialization::access

Additional Inherited Members
Static Public Member Functions inherited from GranOO3::DEM::Bond
static double	get_disabled_cumulative_surface ()
	get the total surface disabled surface More...

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Member Functions inherited from GranOO3::Physic::CriticalTimeStep
static const std::set< CriticalTimeStep * > &	get_all ()

Protected Member Functions inherited from GranOO3::DEM::Bond
template<class Archive >
void	save (Archive &, const unsigned int) const

template<class Archive >
void	load (Archive &, const unsigned int)

	BOOST_SERIALIZATION_SPLIT_MEMBER ()

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Protected Member Functions inherited from GranOO3::Physic::CriticalTimeStep
	CriticalTimeStep ()
	constructor More...

virtual	~CriticalTimeStep ()
	destructor More...

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Protected Attributes inherited from GranOO3::DEM::Bond
Element *	_element1
	the first of the two bonded Element More...

Element *	_element2
	the second of the two bonded Element More...

double	_linear_damping_factor
	the linear damping factor of the bond More...

double	_angular_damping_factor
	the angular damping factor of the bond More...

double	_relaxed_length
	the relaxed length of the bond. More...

double	_current_length
	the current length of the bond that correspond to the norm of the vector between the center of the bonded elements More...

double	_max_relative_elongation
	a threshold corresponding to a maximal admissible relative elongation (the longitudinal strain) More...

double	_surface
	this attribute stores the corresponding normal surface of the bond More...

Core::SetOfBase< Bond >	_slave
	a container that list the slave bond More...

std::vector< unsigned int >	_dofs
	a vector that stores the dof of the bond More...

Protected Attributes inherited from GranOO3::Physic::BodyInteraction
Body *	_body1
	a pointer the first body More...

Body *	_body2
	a pointer the second body More...

Geom::Vector	_torque_on1
	the current value of the applied torque on the body 1 More...

Geom::Vector	_torque_on2
	the current value of the applied torque on the body 2 More...

Protected Attributes inherited from GranOO3::Physic::NodeInteraction
const bool	_contact_interaction

Node *	_node1

Node *	_node2

Geom::Vector	_force_on1

Geom::Vector	_force_on2

Protected Attributes inherited from GranOO3::Core::PropClass< Bond >
std::vector< Core::Prop< Bond > * >	_prop

Detailed Description

a special bond that must be used with Voronoi domain in order to model a perfect elastic media

The flat bond models the interaction between two contiguous polyhedral elements given by a Voronoi tessellation. This model should be used for modeling a perfect brittle elastic media with DEM. This model does not require any calibration step, this is the main advantage. You can get a complete description here [1].

[1] Damien André, Jérémie Girardot and Cédric Hubert (2019). A novel DEM approach for modeling brittle elastic media based on distinct lattice spring model. Computer Methods in Applied Mechanics and Engineering.

Member Enumeration Documentation

◆ DrawMode

enum GranOO3::DEM::FlatBond::DrawMode

Enumerator
NO_INTERFACE
INTERFACE

Constructor & Destructor Documentation

◆ FlatBond() [1/4]

GranOO3::DEM::FlatBond::FlatBond	(	Element &	el1,
		Element &	el2,
		bool	build_voronoi_bond = `true`
	)

◆ FlatBond() [2/4]

GranOO3::DEM::FlatBond::FlatBond	(	Element &	el1,
		Element &	el2,
		double	young_modulus,
		double	poisson_ratio,
		bool	build_voronoi_bond = `true`
	)

◆ ~FlatBond()

GranOO3::DEM::FlatBond::~FlatBond ( )

virtual

destructor

Destroy a flatbond instance.

◆ FlatBond() [3/4]

GranOO3::DEM::FlatBond::FlatBond ( )

privatedelete

◆ FlatBond() [4/4]

GranOO3::DEM::FlatBond::FlatBond ( const FlatBond & )

privatedelete

Member Function Documentation

◆ compute_critical_time_step()

double GranOO3::DEM::FlatBond::compute_critical_time_step ( ) const

virtual

compute the critical time of the bond

Returns: the maximal time step

Note that this method computes on-the-fly the critical time step.

Implements GranOO3::Physic::CriticalTimeStep.

◆ compute_load()

void GranOO3::DEM::FlatBond::compute_load ( )

virtual

trigger the computing of the reaction force and torque

Reimplemented from GranOO3::DEM::Bond.

◆ draw()

void GranOO3::DEM::FlatBond::draw ( )

inlinevirtual

OpenGL draw of the bond

This method is used for fdrwaing the bond. It is used by the granoo-viewer vizualization tool

Reimplemented from GranOO3::DEM::Bond.

◆ fail()

void GranOO3::DEM::FlatBond::fail ( const FailureMode mode )

private

◆ get_angular_stiffness()

double GranOO3::DEM::FlatBond::get_angular_stiffness ( ) const

virtual

similar as get_linear_stiffness() for rotation

Reimplemented from GranOO3::DEM::Bond.

◆ get_linear_stiffness()

double GranOO3::DEM::FlatBond::get_linear_stiffness ( ) const

virtual

compute the linear stiffness of the bond

Returns: the linear stiffness

Reimplemented from GranOO3::DEM::Bond.

◆ info()

std::string GranOO3::DEM::FlatBond::info ( ) const

virtual

Display some useful info in the terminal

Reimplemented from GranOO3::DEM::Bond.

◆ operator=()

FlatBond& GranOO3::DEM::FlatBond::operator= ( const FlatBond & )

privatedelete

◆ serialize()

template<class Archive >

void GranOO3::DEM::FlatBond::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the bond in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ update_strain_tensor_and_compute_reaction_force_and_torque()

void GranOO3::DEM::FlatBond::update_strain_tensor_and_compute_reaction_force_and_torque ( )

update the reaction force and torque

The local strain tensor is first updated. Then, the reaction force and torque are computed based on this new value of local strain by simply applying Hook's law.

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _current_normal_stress

double GranOO3::DEM::FlatBond::_current_normal_stress

private

◆ _current_shear_stress

double GranOO3::DEM::FlatBond::_current_shear_stress

private

◆ _current_strain_tensor

Geom::SymTensor GranOO3::DEM::FlatBond::_current_strain_tensor

private

◆ _current_stress_tensor

Geom::SymTensor GranOO3::DEM::FlatBond::_current_stress_tensor

private

◆ _current_stress_vector

Geom::Vector GranOO3::DEM::FlatBond::_current_stress_vector

private

the current value of the stress vector with the normal perpendicular to the Voronoi facet

◆ _FC1

Geom::Point GranOO3::DEM::FlatBond::_FC1

private

the center of the voronoi facet expressed in the el1 local frame

◆ _FC2

Geom::Point GranOO3::DEM::FlatBond::_FC2

private

the center of the voronoi facet expressed in the el2 local frame

◆ _friction_coeff

double GranOO3::DEM::FlatBond::_friction_coeff

private

◆ _manage_crack_closure

bool GranOO3::DEM::FlatBond::_manage_crack_closure

private

◆ _maximum_compressive_stress

double GranOO3::DEM::FlatBond::_maximum_compressive_stress

private

the maximal compressive stress of the flatbond in [Pa]

◆ _maximum_shear_stress

double GranOO3::DEM::FlatBond::_maximum_shear_stress

private

◆ _maximum_tensile_stress

double GranOO3::DEM::FlatBond::_maximum_tensile_stress

private

the maximal tensile stress of the flatbond in [Pa]

◆ _poisson_ratio

double GranOO3::DEM::FlatBond::_poisson_ratio

private

the Poisson's ratio of the flatbond in [-]

◆ _voronoi_bond

VoronoiBond * GranOO3::DEM::FlatBond::_voronoi_bond

private

a pointer to the associated VoronoiBond property

A VoronoiBond property is automatically associated to the FlatBond as a FlatBond is supposed coming from a Voronoi domain.

◆ _young_modulus

double GranOO3::DEM::FlatBond::_young_modulus

private

the Young's modulus value of the flatbond in [Pa]

◆ draw_mode

FlatBond::DrawMode GranOO3::DEM::FlatBond::draw_mode = NO_INTERFACE

static

◆ update_current_strain

bool GranOO3::DEM::FlatBond::update_current_strain = false

static

◆ update_current_stress

bool GranOO3::DEM::FlatBond::update_current_stress = false

static

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Bond/FlatBond.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/FlatBond.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/FlatBond.dox
