a bond model that represents a beam able to handle plastic deformation. More...

#include <PlasticBeam.hpp>

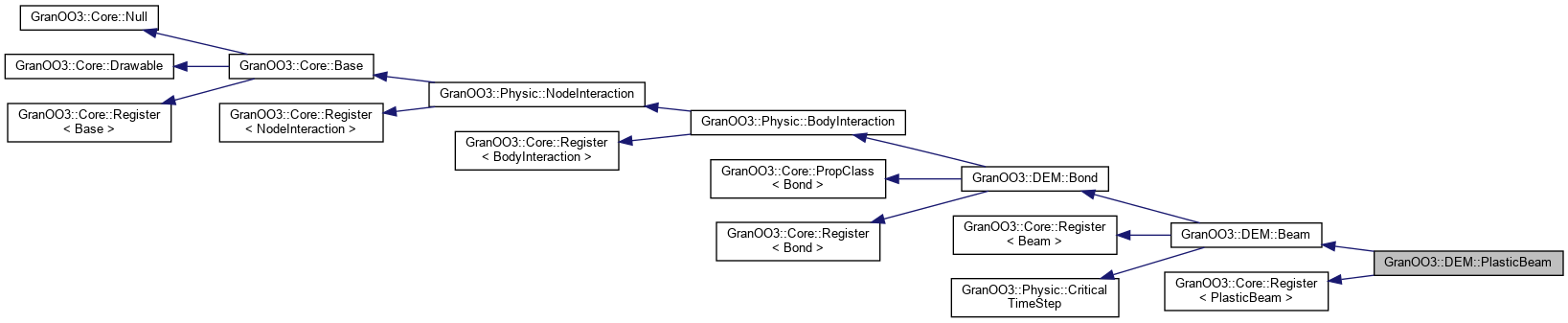

Inheritance diagram for GranOO3::DEM::PlasticBeam:

[legend]

Public Member Functions
	PlasticBeam (Element &el1, Element &el2)
	constructor More...

	PlasticBeam (Element &el1, Element &el2, double young_mod, double damp, double rad, double poisson_ratio, double max_stress)
	constructor More...

virtual	~PlasticBeam ()
	destructor More...

virtual void	compute_load ()
	trigger the computing of the reaction force and torque More...

virtual std::string	info () const
	Display some useful info in the terminal More...

virtual void	draw ()
	OpenGL draw of the bond More...

bool	is_plastic () const
	util method to know if the beam is exhibiting plastic deformation More...

void	enable_plastic_mode ()
	a method that enable the plastic mode More...

Public Member Functions inherited from GranOO3::DEM::Beam
	Beam (Element &el1, Element &el2)
	constructor More...

	Beam (Element &el1, Element &el2, double young_mod, double radius, double poisson_ratio, double max_stress=0.)
	constructor More...

	Beam (Element &el1, Element &el2, double young_mod, double damping, double radius, double poisson_ratio, double max_stress)
	constructor More...

virtual	~Beam ()

virtual double	get_linear_stiffness () const
	compute the linear stiffness of the bond More...

virtual double	get_angular_stiffness () const
	similar as get_linear_stiffness() for rotation More...

virtual double	compute_critical_time_step () const
	compute the critical time of the bond More...

void	update_coeff_value ()

Public Member Functions inherited from GranOO3::DEM::Bond
	Bond (Element &el1, Element &el2, bool contact=false)
	Constructor. More...

virtual	~Bond ()=0
	Destructor. More...

Element &	get_item1 ()

const Element &	get_item1 () const

Element &	get_item2 ()

const Element &	get_item2 () const

Element &	item1 ()

Element &	item2 ()

double	get_normal_force_intensity () const

double	get_tangential_force_intensity () const

Element &	bonded_element (const Element &)
	get the bonded element More...

const Element &	get_bonded_element (const Element &) const
	same as bonded_element(const Element&) (provided for convenience) More...

void	apply_linear_damping_factor ()
	compute and apply the linear (translation) damping factor of the bond More...

void	apply_angular_damping_factor ()
	similar as apply_linear_damping_factor() for rotation More...

void	apply_load ()
	apply the computed reaction force and torque to the bonded Element (_element1 and _element2) More...

void	disable (bool manage_slave=true)
	disable the bond More...

void	disable_fast_mode (bool manage_slave=true)
	simply disable the bond by switching the _disabled attribute to true without doing the lot of things done by the disable() method More...

void	enable (bool manage_slave=true)
	simply enable the bond by switching the _disabled attribute to false More...

bool	is_disabled () const
	check if the bond is enable or not More...

void	crack (bool manage_slave=true)

void	uncrack (bool manage_slave=true)

bool	is_cracked () const

void	init_local_frame (bool update_initial_param=false)
	initialize the bond local frame More...

void	update_local_frame ()
	update the bond local frame More...

void	update_current_length ()
	update the current value of the bond length (see _current_length attribute) More...

void	build_voronoi_bond ()
	build a voronoi bond from the current bond More...

virtual void	stiffness_matrix (Eigen::MatrixXd &kMatrix)
	assemble a stiffness matrix More...

virtual void	update_dof ()
	update the bond dof More...

const std::vector< unsigned int > &	get_dof () const
	get the dof vector More...

const Geom::Point &	initial_pos (const Element &) const
	get the initial position of the `el` element More...

Geom::Vector	get_disp (const Element &) const
	get the displacement of the `el` element More...

Geom::Vector	get_disp1 () const
	get the displacement of the first bonded element (_element1) More...

Geom::Vector	get_disp2 () const
	similar as get_disp1() More...

void	swap (Element &from, Element &to)
	swap the bond from the Element `from` to `to` More...

void	add_slave (Bond &b)
	add a slave bond (useful for periodic simulation) More...

virtual std::ostream &	export_to_povray (std::ostream &out) const
	exporting to povray format More...

Public Member Functions inherited from GranOO3::Physic::BodyInteraction
	BodyInteraction (Body &b1, Body &b2, bool contact_interaction)
	constructor More...

virtual	~BodyInteraction ()
	destructor More...

void	apply_torque ()
	apply the current torque value More...

void	clear_torque ()
	set the torques to zero More...

Geom::Vector &	torque_on (const Body &b)
	get the torque value applied on `b` More...

const Geom::Vector &	torque_on (const Body &b) const
	same as BodyInteraction::torque_on More...

void	add_label_torque (const std::string &label, const Geom::Vector &t1, const Geom::Vector &t2)
	add a label for the torque More...

void	swap (Body &from, Body &to)
	swap one body More...

Public Member Functions inherited from GranOO3::Physic::NodeInteraction
	NodeInteraction (Node &de1, Node &de2, bool build_node_interaction)

virtual	~NodeInteraction ()

bool	contact_interaction () const

void	apply_force ()

void	clear_force ()

Geom::Vector &	force_on (const Node &)

const Geom::Vector &	force_on (const Node &) const

void	swap (Node &from, Node &to)

virtual std::ostream &	write_ascii (std::ostream &out) const

void	add_label_force (const std::string &label, const Geom::Vector &f1, const Geom::Vector &f2)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::istream &	read_ascii (std::istream &in)

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< NodeInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< NodeInteraction > &set) const

std::list< SetOf< NodeInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BodyInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BodyInteraction > &set) const

std::list< SetOf< BodyInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::PropClass< Bond >
	PropClass ()

virtual	~PropClass ()

T &	new_object ()

T &	get ()

const T &	get () const

bool	prop_exist () const

void	add_prop (Core::Prop< Bond > *)

void	remove_prop (Core::Prop< Bond > *)

std::string	info () const

Public Member Functions inherited from GranOO3::Core::Register< Bond >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Bond > &set) const

std::list< SetOf< Bond > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< Beam >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Beam > &set) const

std::list< SetOf< Beam > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< PlasticBeam >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< PlasticBeam > &set) const

std::list< SetOf< PlasticBeam > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Private Member Functions
	PlasticBeam ()=delete

	PlasticBeam (const PlasticBeam &)=delete

PlasticBeam &	operator= (const PlasticBeam &)=delete

template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the bond in the *.gdd format More...

Private Attributes
bool	_plastic
	a Boolean variable to know if the beam is currently in plastic mode or not More...

double	_max_elastic_relative_elongation
	the elastic limit in terms of deformation More...

double	_max_normal_force
	this attribute is able to store the current maximal normal force (for internal usage only) More...

double	_max_bending_force
	this attribute is able to store the current maximal bending force (for internal usage only) More...

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from GranOO3::DEM::Bond
enum	FailureMode { NONE =0 , TENSION =1 , COMPRESSION =2 , SHEAR =3 }

enum	DrawMode { SOLID , LINE , NO }

Static Public Member Functions inherited from GranOO3::DEM::Beam
static unsigned int	get_broken_beam_number ()

Static Public Member Functions inherited from GranOO3::DEM::Bond
static double	get_disabled_cumulative_surface ()
	get the total surface disabled surface More...

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Member Functions inherited from GranOO3::Physic::CriticalTimeStep
static const std::set< CriticalTimeStep * > &	get_all ()

Static Public Attributes inherited from GranOO3::DEM::Bond
static double	epsilon
	a very small value used as a threshold More...

static double	draw_solid_factor

static DrawMode	draw_mode = LINE

static Core::Signal< Bond & >	disable_signal = Core::Signal<Bond&>()
	get the signal when a bond is disabled More...

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::DEM::Bond
template<class Archive >
void	save (Archive &, const unsigned int) const

template<class Archive >
void	load (Archive &, const unsigned int)

	BOOST_SERIALIZATION_SPLIT_MEMBER ()

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Protected Member Functions inherited from GranOO3::Physic::CriticalTimeStep
	CriticalTimeStep ()
	constructor More...

virtual	~CriticalTimeStep ()
	destructor More...

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Protected Attributes inherited from GranOO3::DEM::Beam
double	_young_modulus
	the Young's modulus value of the beam in [Pa] More...

double	_radius
	the radius of the beam in [m] More...

double	_poisson_ratio
	the Poisson's ratio of the beam in [-] More...

double	_max_stress
	the maximal tensile stress of the beam in [Pa] More...

double	_current_stress
	the current maximal stress (including normal, bending and torsion stresses) in [Pa] More...

double	_current_tensile_stress
	the current tensile stress into the beam More...

double	_current_bending_stress
	the current maximal bending stress into the beam More...

double	_current_torsion_stress
	the current maximal torsion stress into the beam More...

double	_current_normal_stress
	the current maximal normal stress into the beam (sum of tensile and bending stresses) More...

double	_Ig
	for storing some intermediate values to speed-up the computation (quadratic inertia) More...

double	_factor_Tb
	for storing some intermediate values to speed-up the computation More...

double	_Io
	for storing some intermediate values to speed-up the computation (quadratic polar inertia) More...

double	_G
	for storing some intermediate values to speed-up the computation (Coulomb's modulus) More...

double	_factor_Tt
	for storing some intermediate values to speed-up the computation More...

double	_S
	for storing some intermediate values to speed-up the computation (normal surface) More...

double	_K
	for storing some intermediate values to speed-up the computation (normal stiffness) More...

double	_factor_Fb
	for storing some intermediate values to speed-up the computation More...

Protected Attributes inherited from GranOO3::DEM::Bond
Element *	_element1
	the first of the two bonded Element More...

Element *	_element2
	the second of the two bonded Element More...

double	_linear_damping_factor
	the linear damping factor of the bond More...

double	_angular_damping_factor
	the angular damping factor of the bond More...

double	_relaxed_length
	the relaxed length of the bond. More...

double	_current_length
	the current length of the bond that correspond to the norm of the vector between the center of the bonded elements More...

double	_max_relative_elongation
	a threshold corresponding to a maximal admissible relative elongation (the longitudinal strain) More...

double	_surface
	this attribute stores the corresponding normal surface of the bond More...

Core::SetOfBase< Bond >	_slave
	a container that list the slave bond More...

std::vector< unsigned int >	_dofs
	a vector that stores the dof of the bond More...

Protected Attributes inherited from GranOO3::Physic::BodyInteraction
Body *	_body1
	a pointer the first body More...

Body *	_body2
	a pointer the second body More...

Geom::Vector	_torque_on1
	the current value of the applied torque on the body 1 More...

Geom::Vector	_torque_on2
	the current value of the applied torque on the body 2 More...

Protected Attributes inherited from GranOO3::Physic::NodeInteraction
const bool	_contact_interaction

Node *	_node1

Node *	_node2

Geom::Vector	_force_on1

Geom::Vector	_force_on2

Protected Attributes inherited from GranOO3::Core::PropClass< Bond >
std::vector< Core::Prop< Bond > * >	_prop

Detailed Description

a bond model that represents a beam able to handle plastic deformation.

This class derives from the DEM::Beam class.

Constructor & Destructor Documentation

◆ PlasticBeam() [1/4]

GranOO3::DEM::PlasticBeam::PlasticBeam	(	Element &	el1,
		Element &	el2
	)

constructor

Parameters

[in]	el1	: the first bonded element
[in]	el2	: the second bonded element

Build a new plastic beam between the Element el1 and el2. Mechanical attributes are set to zero.

◆ PlasticBeam() [2/4]

GranOO3::DEM::PlasticBeam::PlasticBeam	(	Element &	el1,
		Element &	el2,
		double	young_mod,
		double	damp,
		double	rad,
		double	poisson_ratio,
		double	max_stress
	)

constructor

Parameters

[in]	el1	: the first bonded element
[in]	el2	: the second bonded element
[in]	young_mod	: the Young's modulus of the beam in [Pa]
[in]	damp	: the damping factor (in the [0,1] range) which is expressed as the ratio of the critical damping
[in]	rad	: the radius of the beam in [m]
[in]	poisson_ratio	: the Poisson's ratio value of the beam
[in]	max_stress	: the maximal stress threshold of the beam in [Pa] (note that zero means infinite strength)

Build a new plastic beam between the Element el1 and el2 with the required mechanical attributes.

◆ ~PlasticBeam()

GranOO3::DEM::PlasticBeam::~PlasticBeam ( )

virtual

destructor

Destroy a plastic beam instance.

◆ PlasticBeam() [3/4]

GranOO3::DEM::PlasticBeam::PlasticBeam ( )

privatedelete

◆ PlasticBeam() [4/4]

GranOO3::DEM::PlasticBeam::PlasticBeam ( const PlasticBeam & )

privatedelete

Member Function Documentation

◆ compute_load()

void GranOO3::DEM::PlasticBeam::compute_load ( )

virtual

trigger the computing of the reaction force and torque

The plastic deformation is computed in this method.

Reimplemented from GranOO3::DEM::Beam.

◆ draw()

GranOO3::DEM::PlasticBeam::draw ( )

virtual

OpenGL draw of the bond

This method is used for drawing the bond. It is used by the granoo-viewer vizualization tool

Reimplemented from GranOO3::DEM::Beam.

◆ enable_plastic_mode()

void GranOO3::DEM::PlasticBeam::enable_plastic_mode ( )

a method that enable the plastic mode

This method must be triggered when the beam becomes plastic. This method allows to store a set of variable able to manage the plastic deformation.

◆ info()

std::string GranOO3::DEM::PlasticBeam::info ( ) const

virtual

Display some useful info in the terminal

Reimplemented from GranOO3::DEM::Beam.

◆ is_plastic()

bool GranOO3::DEM::PlasticBeam::is_plastic ( ) const

inline

util method to know if the beam is exhibiting plastic deformation

Returns: true if the beam is currently exhibiting plastic deformation false otherwise

This method simply returns the _plastic attribute

◆ operator=()

PlasticBeam& GranOO3::DEM::PlasticBeam::operator= ( const PlasticBeam & )

privatedelete

◆ serialize()

template<class Archive >

void GranOO3::DEM::PlasticBeam::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the bond in the *.gdd format

See also: the Domain classes to get additional info about I/O

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _max_bending_force

double GranOO3::DEM::PlasticBeam::_max_bending_force

private

this attribute is able to store the current maximal bending force (for internal usage only)

◆ _max_elastic_relative_elongation

double GranOO3::DEM::PlasticBeam::_max_elastic_relative_elongation

private

the elastic limit in terms of deformation

This attribute is able to drive the elastic limit. Here, the criterion is expressed through a maximal relative elongation (longitudinal deformation). If the current elongation is higher than the _max_elastic_relative_elongation, the plastic mode is enable.

◆ _max_normal_force

double GranOO3::DEM::PlasticBeam::_max_normal_force

private

this attribute is able to store the current maximal normal force (for internal usage only)

◆ _plastic

bool GranOO3::DEM::PlasticBeam::_plastic

private

a Boolean variable to know if the beam is currently in plastic mode or not

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Bond/PlasticBeam.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/PlasticBeam.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/PlasticBeam.dox
