a bond spring More...

#include <Spring.hpp>

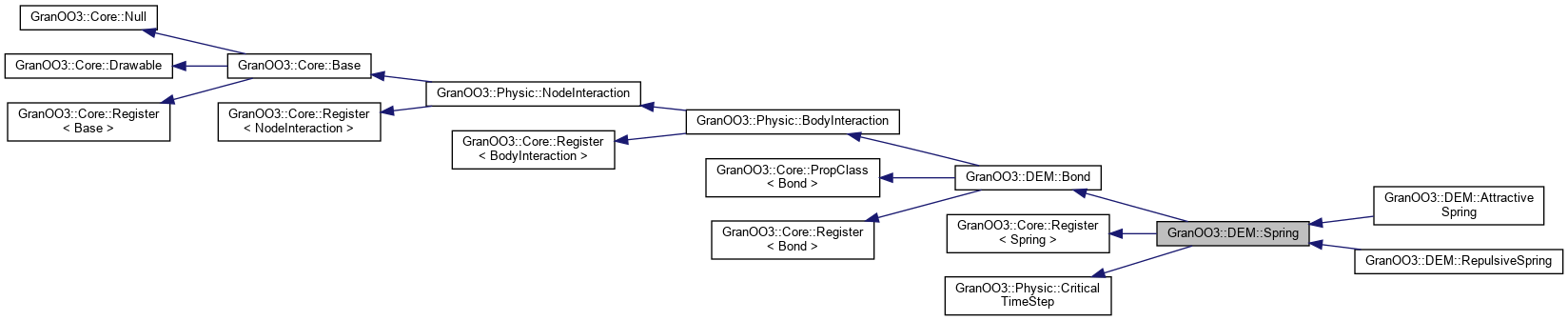

Inheritance diagram for GranOO3::DEM::Spring:

[legend]

Public Member Functions
	Spring (Element &el1, Element &el2)
	constructor More...

	Spring (Element &el1, Element &el2, double stiffness, double damping, double max_relative_elongation=0)
	constructor More...

	Spring (Element &el1, Element &el2, double stiffness, double damping, double attrac_coef, double rep_coeff, double max_relative_elongation=0)
	constructor More...

virtual	~Spring ()
	destructor More...

void	init ()
	initialize the spring (it does nothing) More...

virtual void	update ()
	update the current values of elongation, local frame, etc... More...

void	process ()
	update the current value of reaction force More...

virtual void	compute_load ()
	trigger the computation of the reaction force and torque of the spring More...

virtual double	get_linear_stiffness () const
	compute the linear stiffness of the bond More...

virtual double	get_angular_stiffness () const
	always return 0 in case of spring More...

virtual double	compute_critical_time_step () const
	compute the critical time of the bond More...

virtual std::string	info () const
	Display some useful info in the terminal More...

double	get_restitution_coeff () const
	get the current value of the restitution coefficient More...

void	set_restitution_coeff (double val)
	set the current value of the restitution coefficient More...

Public Member Functions inherited from GranOO3::DEM::Bond
	Bond (Element &el1, Element &el2, bool contact=false)
	Constructor. More...

virtual	~Bond ()=0
	Destructor. More...

virtual void	draw ()
	OpenGL draw of the bond More...

Element &	get_item1 ()

const Element &	get_item1 () const

Element &	get_item2 ()

const Element &	get_item2 () const

Element &	item1 ()

Element &	item2 ()

double	get_normal_force_intensity () const

double	get_tangential_force_intensity () const

Element &	bonded_element (const Element &)
	get the bonded element More...

const Element &	get_bonded_element (const Element &) const
	same as bonded_element(const Element&) (provided for convenience) More...

void	apply_linear_damping_factor ()
	compute and apply the linear (translation) damping factor of the bond More...

void	apply_angular_damping_factor ()
	similar as apply_linear_damping_factor() for rotation More...

void	apply_load ()
	apply the computed reaction force and torque to the bonded Element (_element1 and _element2) More...

void	disable (bool manage_slave=true)
	disable the bond More...

void	disable_fast_mode (bool manage_slave=true)
	simply disable the bond by switching the _disabled attribute to true without doing the lot of things done by the disable() method More...

void	enable (bool manage_slave=true)
	simply enable the bond by switching the _disabled attribute to false More...

bool	is_disabled () const
	check if the bond is enable or not More...

void	crack (bool manage_slave=true)

void	uncrack (bool manage_slave=true)

bool	is_cracked () const

void	init_local_frame (bool update_initial_param=false)
	initialize the bond local frame More...

void	update_local_frame ()
	update the bond local frame More...

void	update_current_length ()
	update the current value of the bond length (see _current_length attribute) More...

void	build_voronoi_bond ()
	build a voronoi bond from the current bond More...

virtual void	stiffness_matrix (Eigen::MatrixXd &kMatrix)
	assemble a stiffness matrix More...

virtual void	update_dof ()
	update the bond dof More...

const std::vector< unsigned int > &	get_dof () const
	get the dof vector More...

const Geom::Point &	initial_pos (const Element &) const
	get the initial position of the `el` element More...

Geom::Vector	get_disp (const Element &) const
	get the displacement of the `el` element More...

Geom::Vector	get_disp1 () const
	get the displacement of the first bonded element (_element1) More...

Geom::Vector	get_disp2 () const
	similar as get_disp1() More...

void	swap (Element &from, Element &to)
	swap the bond from the Element `from` to `to` More...

void	add_slave (Bond &b)
	add a slave bond (useful for periodic simulation) More...

virtual std::ostream &	export_to_povray (std::ostream &out) const
	exporting to povray format More...

Public Member Functions inherited from GranOO3::Physic::BodyInteraction
	BodyInteraction (Body &b1, Body &b2, bool contact_interaction)
	constructor More...

virtual	~BodyInteraction ()
	destructor More...

void	apply_torque ()
	apply the current torque value More...

void	clear_torque ()
	set the torques to zero More...

Geom::Vector &	torque_on (const Body &b)
	get the torque value applied on `b` More...

const Geom::Vector &	torque_on (const Body &b) const
	same as BodyInteraction::torque_on More...

void	add_label_torque (const std::string &label, const Geom::Vector &t1, const Geom::Vector &t2)
	add a label for the torque More...

void	swap (Body &from, Body &to)
	swap one body More...

Public Member Functions inherited from GranOO3::Physic::NodeInteraction
	NodeInteraction (Node &de1, Node &de2, bool build_node_interaction)

virtual	~NodeInteraction ()

bool	contact_interaction () const

void	apply_force ()

void	clear_force ()

Geom::Vector &	force_on (const Node &)

const Geom::Vector &	force_on (const Node &) const

void	swap (Node &from, Node &to)

virtual std::ostream &	write_ascii (std::ostream &out) const

void	add_label_force (const std::string &label, const Geom::Vector &f1, const Geom::Vector &f2)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::istream &	read_ascii (std::istream &in)

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< NodeInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< NodeInteraction > &set) const

std::list< SetOf< NodeInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BodyInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BodyInteraction > &set) const

std::list< SetOf< BodyInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::PropClass< Bond >
	PropClass ()

virtual	~PropClass ()

T &	new_object ()

T &	get ()

const T &	get () const

bool	prop_exist () const

void	add_prop (Core::Prop< Bond > *)

void	remove_prop (Core::Prop< Bond > *)

std::string	info () const

Public Member Functions inherited from GranOO3::Core::Register< Bond >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Bond > &set) const

std::list< SetOf< Bond > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< Spring >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Spring > &set) const

std::list< SetOf< Spring > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Private Member Functions
	Spring ()=delete

	Spring (const Spring &)=delete

Spring &	operator= (const Spring &)=delete

template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the bond in the *.gdd format More...

Private Attributes
double	_stiffness
	the stiffness of the spring in [N/m] More...

double	_attractive_coeff
	the attractive coefficient which is used as a multiplication factor on the reaction force when the elongation is positive More...

double	_repulsive_coeff
	the repulsive coefficient which is used as a multiplication factor on the reaction force when the elongation is positive More...

Geom::Vector	_direction
	the current direction of the spring (for internal usage) More...

double	_elongation_energy
	the current elongation energy of the spring More...

Geom::Vector	_F1
	the current force acting on the element1 for energy computation (internal usage) More...

Geom::Vector	_F2
	the current force acting on the element2 for energy computation (internal usage) More...

Geom::Vector	_d1
	the current relative displacement of the element1 for energy computation (internal usage) More...

Geom::Vector	_d2
	the current relative displacement of the element2 for energy computation (internal usage) More...

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from GranOO3::DEM::Bond
enum	FailureMode { NONE =0 , TENSION =1 , COMPRESSION =2 , SHEAR =3 }

enum	DrawMode { SOLID , LINE , NO }

Static Public Member Functions inherited from GranOO3::DEM::Bond
static double	get_disabled_cumulative_surface ()
	get the total surface disabled surface More...

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Member Functions inherited from GranOO3::Physic::CriticalTimeStep
static const std::set< CriticalTimeStep * > &	get_all ()

Static Public Attributes inherited from GranOO3::DEM::Bond
static double	epsilon
	a very small value used as a threshold More...

static double	draw_solid_factor

static DrawMode	draw_mode = LINE

static Core::Signal< Bond & >	disable_signal = Core::Signal<Bond&>()
	get the signal when a bond is disabled More...

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::DEM::Bond
template<class Archive >
void	save (Archive &, const unsigned int) const

template<class Archive >
void	load (Archive &, const unsigned int)

	BOOST_SERIALIZATION_SPLIT_MEMBER ()

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Protected Member Functions inherited from GranOO3::Physic::CriticalTimeStep
	CriticalTimeStep ()
	constructor More...

virtual	~CriticalTimeStep ()
	destructor More...

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Protected Attributes inherited from GranOO3::DEM::Bond
Element *	_element1
	the first of the two bonded Element More...

Element *	_element2
	the second of the two bonded Element More...

double	_linear_damping_factor
	the linear damping factor of the bond More...

double	_angular_damping_factor
	the angular damping factor of the bond More...

double	_relaxed_length
	the relaxed length of the bond. More...

double	_current_length
	the current length of the bond that correspond to the norm of the vector between the center of the bonded elements More...

double	_max_relative_elongation
	a threshold corresponding to a maximal admissible relative elongation (the longitudinal strain) More...

double	_surface
	this attribute stores the corresponding normal surface of the bond More...

Core::SetOfBase< Bond >	_slave
	a container that list the slave bond More...

std::vector< unsigned int >	_dofs
	a vector that stores the dof of the bond More...

Protected Attributes inherited from GranOO3::Physic::BodyInteraction
Body *	_body1
	a pointer the first body More...

Body *	_body2
	a pointer the second body More...

Geom::Vector	_torque_on1
	the current value of the applied torque on the body 1 More...

Geom::Vector	_torque_on2
	the current value of the applied torque on the body 2 More...

Protected Attributes inherited from GranOO3::Physic::NodeInteraction
const bool	_contact_interaction

Node *	_node1

Node *	_node2

Geom::Vector	_force_on1

Geom::Vector	_force_on2

Protected Attributes inherited from GranOO3::Core::PropClass< Bond >
std::vector< Core::Prop< Bond > * >	_prop

Detailed Description

a bond spring

This bond is only able to work in tension/compression with normal force. This force can include a stiffness, a damping, an attractive and repulsive parts. Note that this interaction does not transmit any torque.

Constructor & Destructor Documentation

◆ Spring() [1/5]

GranOO3::DEM::Spring::Spring	(	Element &	el1,
		Element &	el2
	)

constructor

Parameters

[in]	el1	: first bonded element
[in]	el2	: second bonded element

Build a new Spring. Mechanical attributes are set to zero.

◆ Spring() [2/5]

GranOO3::DEM::Spring::Spring	(	Element &	el1,
		Element &	el2,
		double	stiffness,
		double	damping,
		double	max_relative_elongation = `0`
	)

constructor

Parameters

[in]	el1	: first bonded element
[in]	el2	: second bonded element
[in]	stiffness	: stiffness of the bond in [N/m]
[in]	damping	: the damping factor (in the [0,1] range) which is expressed as the ratio of the critical damping
[in]	max_relative_elongation	: the maximal deformation treshold expressed in terms of longitudinal strain

Build a new Spring with the required attribute values.

◆ Spring() [3/5]

GranOO3::DEM::Spring::Spring	(	Element &	el1,
		Element &	el2,
		double	stiffness,
		double	damping,
		double	attrac_coef,
		double	rep_coeff,
		double	max_relative_elongation = `0`
	)

constructor

Parameters

[in]	el1	: first bonded element
[in]	el2	: second bonded element
[in]	stiffness	: stiffness of the bond in [N/m]
[in]	damping	: the damping factor (in the [0,1] range) which is expressed as the ratio of the critical damping
[in]	attrac_coef	: the attractive coefficient which is used as a multiplication factor to the reaction force when the elongation is positive
[in]	rep_coeff	: the repulsive coefficient which is used as a multiplication factor to the reaction force when the elongation is negative
[in]	max_relative_elongation	: the maximal deformation treshold expressed in terms of longitudinal strain

Build a new Spring with the required attribute values.

◆ ~Spring()

GranOO3::DEM::Spring::~Spring ( )

virtual

destructor

◆ Spring() [4/5]

GranOO3::DEM::Spring::Spring ( )

privatedelete

◆ Spring() [5/5]

GranOO3::DEM::Spring::Spring ( const Spring & )

privatedelete

Member Function Documentation

◆ compute_critical_time_step()

double GranOO3::DEM::Spring::compute_critical_time_step ( ) const

virtual

compute the critical time of the bond

Returns: the maximal time step

Note that this method computes on-the-fly the critical time step.

Implements GranOO3::Physic::CriticalTimeStep.

◆ compute_load()

void GranOO3::DEM::Spring::compute_load ( )

virtual

trigger the computation of the reaction force and torque of the spring

Reimplemented from GranOO3::DEM::Bond.

Reimplemented in GranOO3::DEM::RepulsiveSpring, and GranOO3::DEM::AttractiveSpring.

◆ get_angular_stiffness()

double GranOO3::DEM::Spring::get_angular_stiffness ( ) const

virtual

always return 0 in case of spring

Reimplemented from GranOO3::DEM::Bond.

◆ get_linear_stiffness()

double GranOO3::DEM::Spring::get_linear_stiffness ( ) const

virtual

compute the linear stiffness of the bond

Returns: the linear stiffness

Reimplemented from GranOO3::DEM::Bond.

◆ get_restitution_coeff()

double GranOO3::DEM::Spring::get_restitution_coeff ( ) const

get the current value of the restitution coefficient

Returns: the restitution coefficient value

Here, the value of the restitution coeff is automatically computed from the value of the damping factor

◆ info()

std::string GranOO3::DEM::Spring::info ( ) const

virtual

Display some useful info in the terminal

Reimplemented from GranOO3::DEM::Bond.

Reimplemented in GranOO3::DEM::RepulsiveSpring, and GranOO3::DEM::AttractiveSpring.

◆ init()

void GranOO3::DEM::Spring::init ( )

initialize the spring (it does nothing)

◆ operator=()

Spring& GranOO3::DEM::Spring::operator= ( const Spring & )

privatedelete

◆ process()

void GranOO3::DEM::Spring::process ( )

update the current value of reaction force

◆ serialize()

template<class Archive >

void GranOO3::DEM::Spring::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the bond in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ set_restitution_coeff()

oid GranOO3::DEM::Spring::set_restitution_coeff ( double val )

set the current value of the restitution coefficient

Parameters

[in] val : the value of the restitution coefficient

Here, the value of the restitution coeff is converted into damping factor for internal storage

◆ update()

void GranOO3::DEM::Spring::update ( )

virtual

update the current values of elongation, local frame, etc...

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _attractive_coeff

double GranOO3::DEM::Spring::_attractive_coeff

private

the attractive coefficient which is used as a multiplication factor on the reaction force when the elongation is positive

◆ _d1

Geom::Vector GranOO3::DEM::Spring::_d1

private

the current relative displacement of the element1 for energy computation (internal usage)

◆ _d2

Geom::Vector GranOO3::DEM::Spring::_d2

private

the current relative displacement of the element2 for energy computation (internal usage)

◆ _direction

Geom::Vector GranOO3::DEM::Spring::_direction

private

the current direction of the spring (for internal usage)

◆ _elongation_energy

double GranOO3::DEM::Spring::_elongation_energy

private

the current elongation energy of the spring

◆ _F1

Geom::Vector GranOO3::DEM::Spring::_F1

private

the current force acting on the element1 for energy computation (internal usage)

◆ _F2

Geom::Vector GranOO3::DEM::Spring::_F2

private

the current force acting on the element2 for energy computation (internal usage)

◆ _repulsive_coeff

double GranOO3::DEM::Spring::_repulsive_coeff

private

the repulsive coefficient which is used as a multiplication factor on the reaction force when the elongation is positive

◆ _stiffness

double GranOO3::DEM::Spring::_stiffness

private

the stiffness of the spring in [N/m]

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Bond/Spring.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/Spring.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/Spring.dox

Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Spring() [1/5]

◆ Spring() [2/5]

◆ Spring() [3/5]

◆ ~Spring()

◆ Spring() [4/5]

◆ Spring() [5/5]

Member Function Documentation

◆ compute_critical_time_step()

◆ compute_load()

◆ get_angular_stiffness()

◆ get_linear_stiffness()

◆ get_restitution_coeff()

◆ info()

◆ init()

◆ operator=()

◆ process()

◆ serialize()

◆ set_restitution_coeff()

◆ update()

Friends And Related Function Documentation

◆ boost::serialization::access

Member Data Documentation

◆ _attractive_coeff

◆ _d1

◆ _d2

◆ _direction

◆ _elongation_energy

◆ _F1

◆ _F2

◆ _repulsive_coeff

◆ _stiffness
