this class is able to transform a regular contact into a bond More...

#include <ContactBond.hpp>

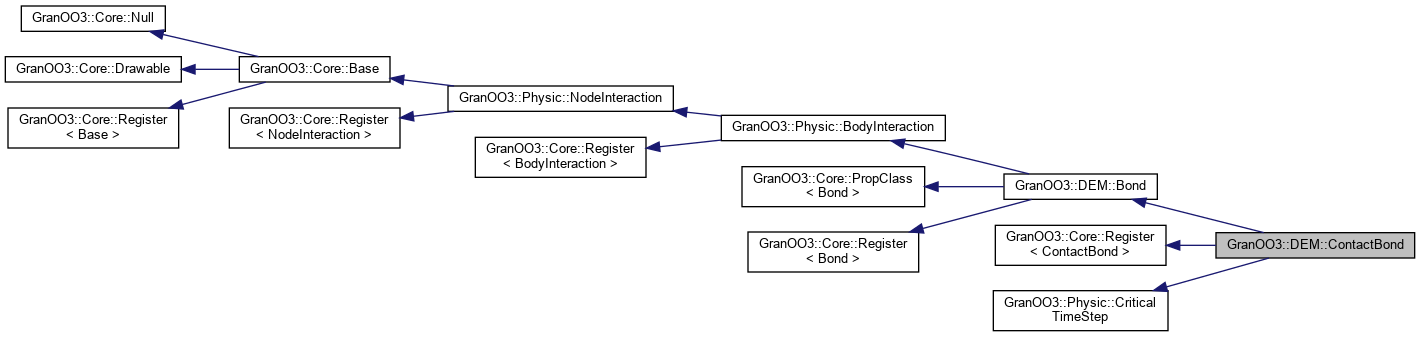

Inheritance diagram for GranOO3::DEM::ContactBond:

[legend]

Public Member Functions
	ContactBond (Element &el1, Element &el2)
	constructor More...

virtual	~ContactBond ()
	destructor More...

void	init ()
	a method that must be overridden from the Bond class. In this case, it does nothing. More...

virtual void	update ()
	a method that must be overridden from the Bond class. In this case, it does nothing. More...

virtual void	compute_load ()
	a method that must be overridden from the Bond class. In this case, it just calls the Bond::compute_load() method. More...

virtual double	compute_critical_time_step () const
	this method is not implemented, it triggers an assertion if it is called. More...

virtual std::string	info () const
	Display some useful info in the terminal More...

Public Member Functions inherited from GranOO3::DEM::Bond
	Bond (Element &el1, Element &el2, bool contact=false)
	Constructor. More...

virtual	~Bond ()=0
	Destructor. More...

virtual void	draw ()
	OpenGL draw of the bond More...

Element &	get_item1 ()

const Element &	get_item1 () const

Element &	get_item2 ()

const Element &	get_item2 () const

Element &	item1 ()

Element &	item2 ()

double	get_normal_force_intensity () const

double	get_tangential_force_intensity () const

Element &	bonded_element (const Element &)
	get the bonded element More...

const Element &	get_bonded_element (const Element &) const
	same as bonded_element(const Element&) (provided for convenience) More...

virtual double	get_linear_stiffness () const
	compute the linear stiffness of the bond More...

virtual double	get_angular_stiffness () const
	similar as get_linear_stiffness() for rotation More...

void	apply_linear_damping_factor ()
	compute and apply the linear (translation) damping factor of the bond More...

void	apply_angular_damping_factor ()
	similar as apply_linear_damping_factor() for rotation More...

void	apply_load ()
	apply the computed reaction force and torque to the bonded Element (_element1 and _element2) More...

void	disable (bool manage_slave=true)
	disable the bond More...

void	disable_fast_mode (bool manage_slave=true)
	simply disable the bond by switching the _disabled attribute to true without doing the lot of things done by the disable() method More...

void	enable (bool manage_slave=true)
	simply enable the bond by switching the _disabled attribute to false More...

bool	is_disabled () const
	check if the bond is enable or not More...

void	crack (bool manage_slave=true)

void	uncrack (bool manage_slave=true)

bool	is_cracked () const

void	init_local_frame (bool update_initial_param=false)
	initialize the bond local frame More...

void	update_local_frame ()
	update the bond local frame More...

void	update_current_length ()
	update the current value of the bond length (see _current_length attribute) More...

void	build_voronoi_bond ()
	build a voronoi bond from the current bond More...

virtual void	stiffness_matrix (Eigen::MatrixXd &kMatrix)
	assemble a stiffness matrix More...

virtual void	update_dof ()
	update the bond dof More...

const std::vector< unsigned int > &	get_dof () const
	get the dof vector More...

const Geom::Point &	initial_pos (const Element &) const
	get the initial position of the `el` element More...

Geom::Vector	get_disp (const Element &) const
	get the displacement of the `el` element More...

Geom::Vector	get_disp1 () const
	get the displacement of the first bonded element (_element1) More...

Geom::Vector	get_disp2 () const
	similar as get_disp1() More...

void	swap (Element &from, Element &to)
	swap the bond from the Element `from` to `to` More...

void	add_slave (Bond &b)
	add a slave bond (useful for periodic simulation) More...

virtual std::ostream &	export_to_povray (std::ostream &out) const
	exporting to povray format More...

Public Member Functions inherited from GranOO3::Physic::BodyInteraction
	BodyInteraction (Body &b1, Body &b2, bool contact_interaction)
	constructor More...

virtual	~BodyInteraction ()
	destructor More...

void	apply_torque ()
	apply the current torque value More...

void	clear_torque ()
	set the torques to zero More...

Geom::Vector &	torque_on (const Body &b)
	get the torque value applied on `b` More...

const Geom::Vector &	torque_on (const Body &b) const
	same as BodyInteraction::torque_on More...

void	add_label_torque (const std::string &label, const Geom::Vector &t1, const Geom::Vector &t2)
	add a label for the torque More...

void	swap (Body &from, Body &to)
	swap one body More...

Public Member Functions inherited from GranOO3::Physic::NodeInteraction
	NodeInteraction (Node &de1, Node &de2, bool build_node_interaction)

virtual	~NodeInteraction ()

bool	contact_interaction () const

void	apply_force ()

void	clear_force ()

Geom::Vector &	force_on (const Node &)

const Geom::Vector &	force_on (const Node &) const

void	swap (Node &from, Node &to)

virtual std::ostream &	write_ascii (std::ostream &out) const

void	add_label_force (const std::string &label, const Geom::Vector &f1, const Geom::Vector &f2)

Public Member Functions inherited from GranOO3::Core::Base
virtual	~Base ()

size_t	numID () const

size_t	uID () const

void	set_numID (size_t val)

void	clear_numID ()

Physic::Material &	get_mat () const

void	set_mat (Physic::Material *)

Base &	item ()

const Base &	item () const

bool	is_same (const Base &) const

template<class T >
T &	cast_to ()

template<class T >
const T &	cast_to () const

template<class T >
bool	is () const

virtual bool	is (size_t) const

virtual const std::string &	get_ID () const

virtual Base &	clone ()

template<class T >
T &	clone_to ()

virtual std::istream &	read_ascii (std::istream &in)

Signal< Base & > &	deleted_signal ()

Public Member Functions inherited from GranOO3::Core::Null
	Null ()

virtual	~Null ()

Public Member Functions inherited from GranOO3::Core::Drawable
	Drawable ()

virtual	~Drawable ()

virtual void	draw_edge ()

virtual void	init_default_color ()

virtual std::ostream &	get_info (std::ostream &os) const

virtual const Color &	default_color () const

Color &	get_color ()

const Color &	get_color () const

virtual void	set_color (const Color &)

virtual void	set_alpha (float alpha)

void	apply_color () const

void	apply_edge_color () const

void	apply_default_color ()

void	apply_selected_color ()

void	set_line_width (float)

float	get_line_width () const

float &	get_line_width ()

void	apply_line_width () const

bool	is_visible () const

void	set_visible (bool)

void	paint ()

void	paint_edge ()

unsigned int	get_item_glkey () const

Public Member Functions inherited from GranOO3::Core::Register< Base >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Base > &set) const

std::list< SetOf< Base > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< NodeInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< NodeInteraction > &set) const

std::list< SetOf< NodeInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< BodyInteraction >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< BodyInteraction > &set) const

std::list< SetOf< BodyInteraction > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::PropClass< Bond >
	PropClass ()

virtual	~PropClass ()

T &	new_object ()

T &	get ()

const T &	get () const

bool	prop_exist () const

void	add_prop (Core::Prop< Bond > *)

void	remove_prop (Core::Prop< Bond > *)

std::string	info () const

Public Member Functions inherited from GranOO3::Core::Register< Bond >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< Bond > &set) const

std::list< SetOf< Bond > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Public Member Functions inherited from GranOO3::Core::Register< ContactBond >
	Register ()

virtual	~Register ()

void	erase_from_all_setof ()

bool	belong_to_setof (const std::string &setOfId) const

bool	belong_to_setof (const SetOf< ContactBond > &set) const

std::list< SetOf< ContactBond > * > &	get_setof_list ()

unsigned long long int	get_numeric_ID () const

Static Public Member Functions
template<class T1 , class T2 >
static void	init_contact_detection_step ()
	a static function that should be called just before running the Collision::Callback method More...

template<class T1 , class T2 >
static void	manage_contact (T1 &t1, T2 &t2)
	a static function that should be called by the Collision::Callback method More...

template<class T1 , class T2 >
static void	apply_contact_load (T1 &t1, T2 &t2, const Geom::Vector &force, const Geom::Vector &torque, const Geom::Point &contact, const double surface=0.)
	a static function that should be called by the Collision::Callback method More...

Static Public Member Functions inherited from GranOO3::DEM::Bond
static double	get_disabled_cumulative_surface ()
	get the total surface disabled surface More...

Static Public Member Functions inherited from GranOO3::Core::Base
static Base &	get_by_numID (size_t)

static void	clear_all_numID ()

static unsigned int	get_sub_class_number ()

Static Public Member Functions inherited from GranOO3::Core::Drawable
static Drawable &	get_drawable_item_by_glkey (int)

static void	set_draw_precision (unsigned int p)

static void	increase_draw_precision ()

static void	decrease_draw_precision ()

static unsigned int	get_draw_precision ()

Static Public Member Functions inherited from GranOO3::Physic::CriticalTimeStep
static const std::set< CriticalTimeStep * > &	get_all ()

Private Member Functions
	ContactBond ()=delete

	ContactBond (const ContactBond &)=delete

ContactBond &	operator= (const ContactBond &)=delete

template<class Archive >
void	serialize (Archive &, const unsigned int)
	complete serializing of the bond in the *.gdd format More...

Private Attributes
const unsigned long long int	_numID
	a unique indentifier computed from the two element unique IDs. More...

Static Private Attributes
static std::map< unsigned long long int, ContactBond * >	_all_map = std::map<unsigned long long int, ContactBond*>()
	a static private variable able to store all the contact bond with a unique ID More...

Friends
class	boost::serialization::access

Additional Inherited Members
Public Types inherited from GranOO3::DEM::Bond
enum	FailureMode { NONE =0 , TENSION =1 , COMPRESSION =2 , SHEAR =3 }

enum	DrawMode { SOLID , LINE , NO }

Static Public Attributes inherited from GranOO3::DEM::Bond
static double	epsilon
	a very small value used as a threshold More...

static double	draw_solid_factor

static DrawMode	draw_mode = LINE

static Core::Signal< Bond & >	disable_signal = Core::Signal<Bond&>()
	get the signal when a bond is disabled More...

Static Public Attributes inherited from GranOO3::Core::Null
static Null	null = Null()

Protected Member Functions inherited from GranOO3::DEM::Bond
template<class Archive >
void	save (Archive &, const unsigned int) const

template<class Archive >
void	load (Archive &, const unsigned int)

	BOOST_SERIALIZATION_SPLIT_MEMBER ()

Protected Member Functions inherited from GranOO3::Core::Base
	Base ()

Protected Member Functions inherited from GranOO3::Physic::CriticalTimeStep
	CriticalTimeStep ()
	constructor More...

virtual	~CriticalTimeStep ()
	destructor More...

Static Protected Member Functions inherited from GranOO3::Core::Base
static unsigned int	affect_class_rank_ID ()

Protected Attributes inherited from GranOO3::DEM::Bond
Element *	_element1
	the first of the two bonded Element More...

Element *	_element2
	the second of the two bonded Element More...

double	_linear_damping_factor
	the linear damping factor of the bond More...

double	_angular_damping_factor
	the angular damping factor of the bond More...

double	_relaxed_length
	the relaxed length of the bond. More...

double	_current_length
	the current length of the bond that correspond to the norm of the vector between the center of the bonded elements More...

double	_max_relative_elongation
	a threshold corresponding to a maximal admissible relative elongation (the longitudinal strain) More...

double	_surface
	this attribute stores the corresponding normal surface of the bond More...

Core::SetOfBase< Bond >	_slave
	a container that list the slave bond More...

std::vector< unsigned int >	_dofs
	a vector that stores the dof of the bond More...

Protected Attributes inherited from GranOO3::Physic::BodyInteraction
Body *	_body1
	a pointer the first body More...

Body *	_body2
	a pointer the second body More...

Geom::Vector	_torque_on1
	the current value of the applied torque on the body 1 More...

Geom::Vector	_torque_on2
	the current value of the applied torque on the body 2 More...

Protected Attributes inherited from GranOO3::Physic::NodeInteraction
const bool	_contact_interaction

Node *	_node1

Node *	_node2

Geom::Vector	_force_on1

Geom::Vector	_force_on2

Protected Attributes inherited from GranOO3::Core::PropClass< Bond >
std::vector< Core::Prop< Bond > * >	_prop

Detailed Description

this class is able to transform a regular contact into a bond

This class is a trick class able to transform a regular contact into a standard. In certain conditions it should be useful to consider (persistent) bonds instead of (vanishing) contacts. For example, if you want to compute virial stresses, these feature is possible only with bond. So, you can use this trick to transform a contact into bond. Note that this process is time consuming and could have a non negligible impact on the computational performance. Note that this option is only available with the HertzMindlin and Standard2 contact callbacks (To learn how to use it, you can take a look into the 00016 example).

Warning: this is an experimental feature

Constructor & Destructor Documentation

◆ ContactBond() [1/3]

GranOO3::DEM::ContactBond::ContactBond	(	Element &	el1,
		Element &	el2
	)

constructor

Parameters

[in]	el1	: the first bonded element
[in]	el2	: the second bonded element

Build a new ContactBond instance and register it into the _all_map static attribute.

◆ ~ContactBond()

GranOO3::DEM::ContactBond::~ContactBond ( )

virtual

destructor

Destroy ContactBond instance and unregister it from the _all_map static attribute.

◆ ContactBond() [2/3]

GranOO3::DEM::ContactBond::ContactBond ( )

privatedelete

◆ ContactBond() [3/3]

GranOO3::DEM::ContactBond::ContactBond ( const ContactBond & )

privatedelete

Member Function Documentation

◆ apply_contact_load()

template<class T1 , class T2 >

void GranOO3::DEM::ContactBond::apply_contact_load	(	T1 &	t1,
		T2 &	t2,
		const Geom::Vector &	force,
		const Geom::Vector &	torque,
		const Geom::Point &	contact,
		const double	surface = `0.`
	)

inlinestatic

a static function that should be called by the Collision::Callback method

Template Parameters

T1	type of the first item in contact
T2	type of the second item in contact

Parameters

[in]	t1	: the first item in contact
[in]	t2	: the second item in contact
[in]	force	: the reaction force computed by the Collision::Callback method
[in]	torque	: the reaction torque computed by the Collision::Callback method
[in]	contact	the coordinate of the contact point

This static function allows to override the reaction force and torque values that will be further applied by the Bond::apply_load() method.

◆ compute_critical_time_step()

double GranOO3::DEM::ContactBond::compute_critical_time_step ( ) const

virtual

this method is not implemented, it triggers an assertion if it is called.

Implements GranOO3::Physic::CriticalTimeStep.

◆ compute_load()

void GranOO3::DEM::ContactBond::compute_load ( )

virtual

a method that must be overridden from the Bond class. In this case, it just calls the Bond::compute_load() method.

Reimplemented from GranOO3::DEM::Bond.

◆ info()

std::string GranOO3::DEM::ContactBond::info ( ) const

virtual

Display some useful info in the terminal

Reimplemented from GranOO3::DEM::Bond.

◆ init()

void GranOO3::DEM::ContactBond::init ( )

a method that must be overridden from the Bond class. In this case, it does nothing.

◆ init_contact_detection_step()

template<class T1 , class T2 >

void GranOO3::DEM::ContactBond::init_contact_detection_step

inlinestatic

a static function that should be called just before running the Collision::Callback method

Template Parameters

T1	type of the first item in contact
T2	type of the second item in contact

This static function allows to prepare all the bond to receive information from the Collision::Callback method.

◆ manage_contact()

template<class T1 , class T2 >

void GranOO3::DEM::ContactBond::manage_contact	(	T1 &	t1,
		T2 &	t2
	)

inlinestatic

a static function that should be called by the Collision::Callback method

Template Parameters

T1	type of the first item in contact
T2	type of the second item in contact

Parameters

[in]	t1	: the first item in contact
[in]	t2	: the second item in contact

This static function allows to prepare the bond to receive information from the Collision::Callback method.

◆ operator=()

ContactBond& GranOO3::DEM::ContactBond::operator= ( const ContactBond & )

privatedelete

◆ serialize()

template<class Archive >

void GranOO3::DEM::ContactBond::serialize	(	Archive &	ar,
		const unsigned int	version
	)

private

complete serializing of the bond in the *.gdd format

See also: the Domain classes to get additional info about I/O

◆ update()

void GranOO3::DEM::ContactBond::update ( )

virtual

a method that must be overridden from the Bond class. In this case, it does nothing.

Friends And Related Function Documentation

◆ boost::serialization::access

friend class boost::serialization::access

friend

Member Data Documentation

◆ _all_map

std::map< unsigned long long int, ContactBond * > GranOO3::DEM::ContactBond::_all_map = std::map<unsigned long long int, ContactBond*>()

staticprivate

a static private variable able to store all the contact bond with a unique ID

This map allows to retrieve very quickly a ContactBond instance from the two items in interaction. To do such thing, a unique identifier (of unsigned long long int type) is generated from the two unique identifier of the bonded items. These identifiers are computing thanks to the Collision::Contact<T1, T2>::compute_ID(const T1& t1, const T2& t2) util method.

◆ _numID

const unsigned long long int GranOO3::DEM::ContactBond::_numID

private

a unique indentifier computed from the two element unique IDs.

This unique ID is used as key in the _all_map static attribute.

The documentation for this class was generated from the following files:

/home/granoo/granoo/Lib/GranOO3/DEM/Bond/ContactBond.hpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/ContactBond.cpp
/home/granoo/granoo/Lib/GranOO3/DEM/Bond/ContactBond.dox

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ContactBond() [1/3]

◆ ~ContactBond()

◆ ContactBond() [2/3]

◆ ContactBond() [3/3]

Member Function Documentation

◆ apply_contact_load()

◆ compute_critical_time_step()

◆ compute_load()

◆ info()

◆ init()

◆ init_contact_detection_step()

◆ manage_contact()

◆ operator=()

◆ serialize()

◆ update()

Friends And Related Function Documentation

◆ boost::serialization::access

Member Data Documentation

◆ _all_map

◆ _numID
